PM6681ATR دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت PM6681ATR	دانلود دیتاشیت

PM6681A 47 pages

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: -
Topology: Step-down
Datasheet: STMicroelectronics PM6681ATR
Input Voltage: -
Output Voltage: -
Duty Cycle (Max): -
Number of Outputs: 4
Switching Frequency: 33kHz
Output Current (Max): -
Operating Temperature: -40°C~+85°C
Quiescent Current (Iq): -
Synchronous Rectification: -

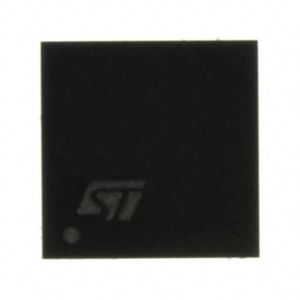

Package: VFQFPN-32(5x5)
Manufacturer: STMicroelectronics
Series: -
Packaging: Tray
Part Status: Active
Frequency - Switching: Down to 33kHz
Voltage/Current - Output 1: 0.9V ~ 5V, 100mA
Voltage/Current - Output 2: 0.9V ~ 3.3V, 100mA
Voltage/Current - Output 3: 5V, 100mA
w/LED Driver: No
w/Supervisor: No
w/Sequencer: No
Voltage - Supply: 4.5V ~ 36V
Mounting Type: Surface Mount
Package / Case: 32-VFQFN Exposed Pad
Supplier Device Package: 32-VFQFPN (5x5)
Base Part Number: PM6681
detail: PMIC - Voltage Regulators - Linear + Switching 4 Output Step-Down (Buck) (2), Linear (LDO) (2) Down to 33kHz 32-VFQFPN (5x5)
