TPS7A6550QKVURQ1 دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت TPS7A6550QKVURQ1	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)

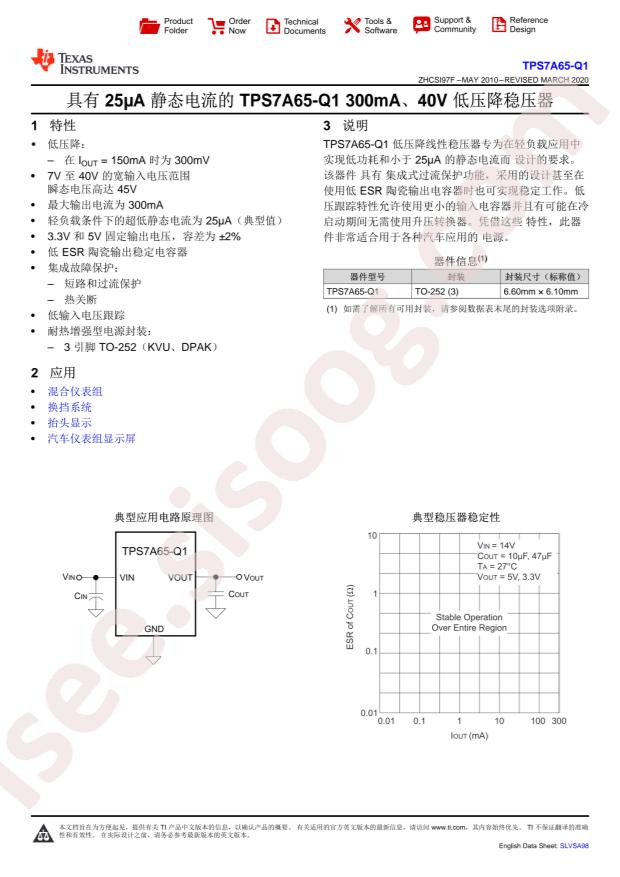

Datasheet: Texas Instruments TPS7A6550QKVURQ1
Output Current: 300mA
Output Voltage: 5V
Dropout Voltage: 0.5V@(250mA)
Output Polarity: positive
Number of Outputs: 1
Maximum Input Voltage: 40V
Operating Temperature: -40°C~+150°C
Quiescent Current (Ground Current): 40uA
Package: TO-252-3
Manufacturer: Texas Instruments
Base Part Number: TPS7A6
Supplier Device Package: TO-252-3
Voltage - Output (Max): -
Output Configuration: Positive
Current - Quiescent (Iq): 40µA
Output Type: Fixed
PSRR: 60dB ~ 30dB (100Hz ~ 150kHz)
Voltage Dropout (Max): 0.5V @ 250mA
Number of Regulators: 1
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)
Voltage - Output (Min/Fixed): 5V
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO), Watchdog
Series: Automotive, AEC-Q100
Voltage - Input (Max): 40V
Current - Output: 300mA
Part Status: Active
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Control Features: Enable, Reset
detail: Linear Voltage Regulator IC 1 Output 300mA TO-252-3
