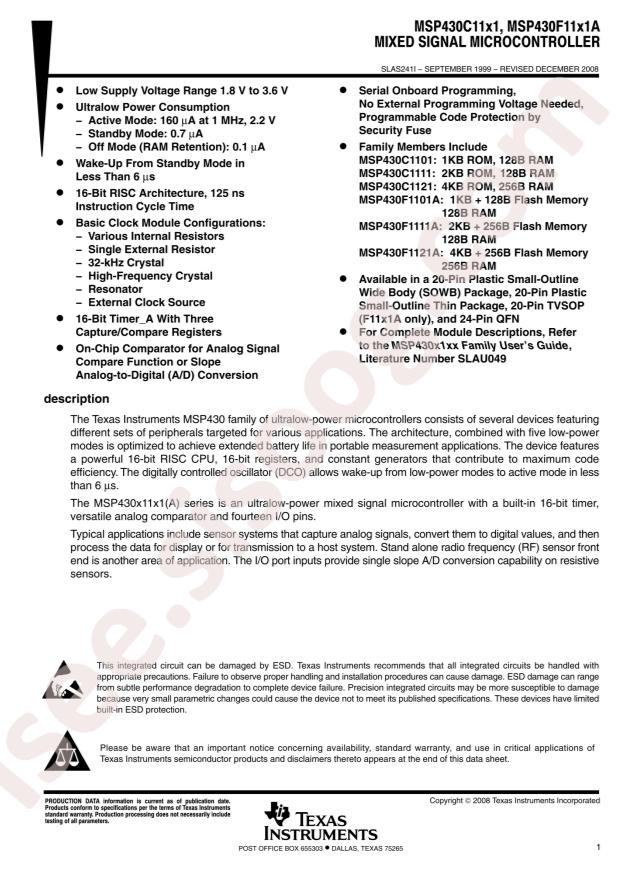

MSP430F1101AIPWR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MSP430F1101AIPWR |
|---|---|
| حجم فایل | 117.005 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 45 |
دانلود دیتاشیت MSP430F1101AIPWR |
دانلود دیتاشیت |
|---|
سایر مستندات
MSP430C11x1, MSP430F11x1A Datasheet 47 pages
مشخصات فنی
- RoHS: true
- CPU Core: MSP430
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- Watchdog: Yes
- Datasheet: Texas Instruments MSP430F1101AIPWR
- CPU Maximum Speed: 8MHz
- GPIO Ports Number: 14
- Low-Voltage Detect: Yes
- Internal Oscillator: Yes
- Program Storage Size: 1KB
- Operating Voltage Range: 1.8V~3.6V
- Operating Temperature Range: -40°C~+85°C
- Package: TSSOP-20
- Manufacturer: Texas Instruments
- Series: MSP430x1xx
- EEPROM Size: -
- Oscillator Type: Internal
- Mounting Type: Surface Mount
- Peripherals: POR, WDT
- Data Converters: Slope A/D
- Packaging: Cut Tape (CT)
- Core Processor: MSP430
- Number of I/O: 14
- Program Memory Size: 1KB (1K x 8 + 256B)
- Core Size: 16-Bit
- Connectivity: -
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
- Supplier Device Package: 20-TSSOP
- Base Part Number: 430F1101
- Program Memory Type: FLASH
- RAM Size: 128 x 8
- Package / Case: 20-TSSOP (0.173", 4.40mm Width)
- Speed: 8MHz
- Part Status: Active
- Operating Temperature: -40°C ~ 85°C (TA)
- detail: MSP430 MSP430x1xx Microcontroller IC 16-Bit 8MHz 1KB (1K x 8 + 256B) FLASH 20-TSSOP
