LMR16010PDDAR دیتاشیت

مشخصات دیتاشیت

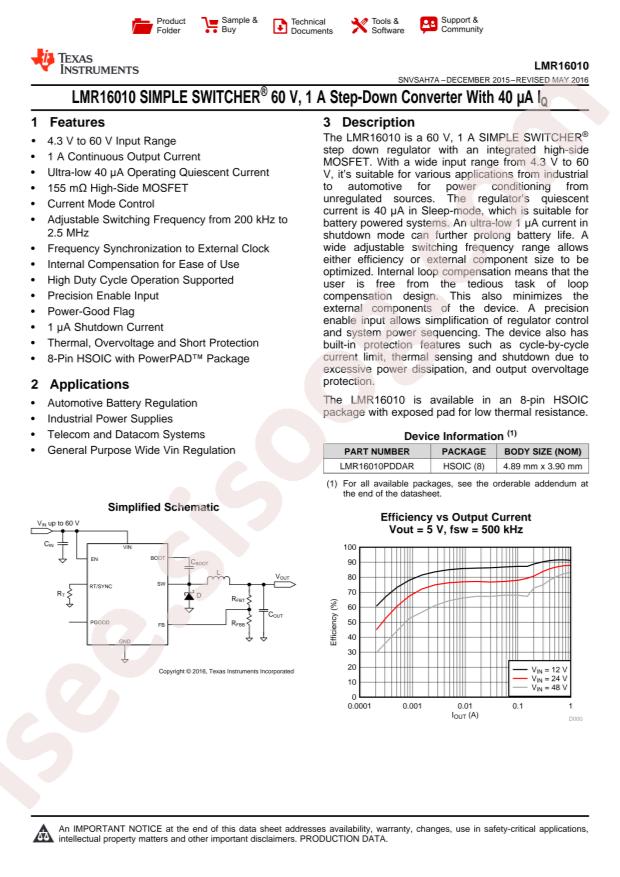

مشاهده دیتاشیت LMR16010PDDAR	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments LMR16010PDDAR
Output Type: Adjustable
Input Voltage: 4.3V~60V
Output Voltage: 0.8V~50V
Number of Outputs: 1
Switching Frequency: 2.5MHz
Output Current (Max): 1A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: SOP-8
Manufacturer: Texas Instruments
Supplier Device Package: 8-SO PowerPad
Voltage - Input (Min): 4.3V
Voltage - Output (Max): 50V
Output Configuration: Positive
Mounting Type: Surface Mount
Current - Output: 1A
Synchronous Rectifier: No
Frequency - Switching: 200kHz ~ 2.5MHz
Packaging: Cut Tape (CT)
Voltage - Output (Min/Fixed): 0.8V
Series: SIMPLE SWITCHER®
Base Part Number: LMR1601
Voltage - Input (Max): 60V
Part Status: Active
Package / Case: 8-PowerSOIC (0.154", 3.90mm Width)
detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A 8-PowerSOIC (0.154", 3.90mm Width)
