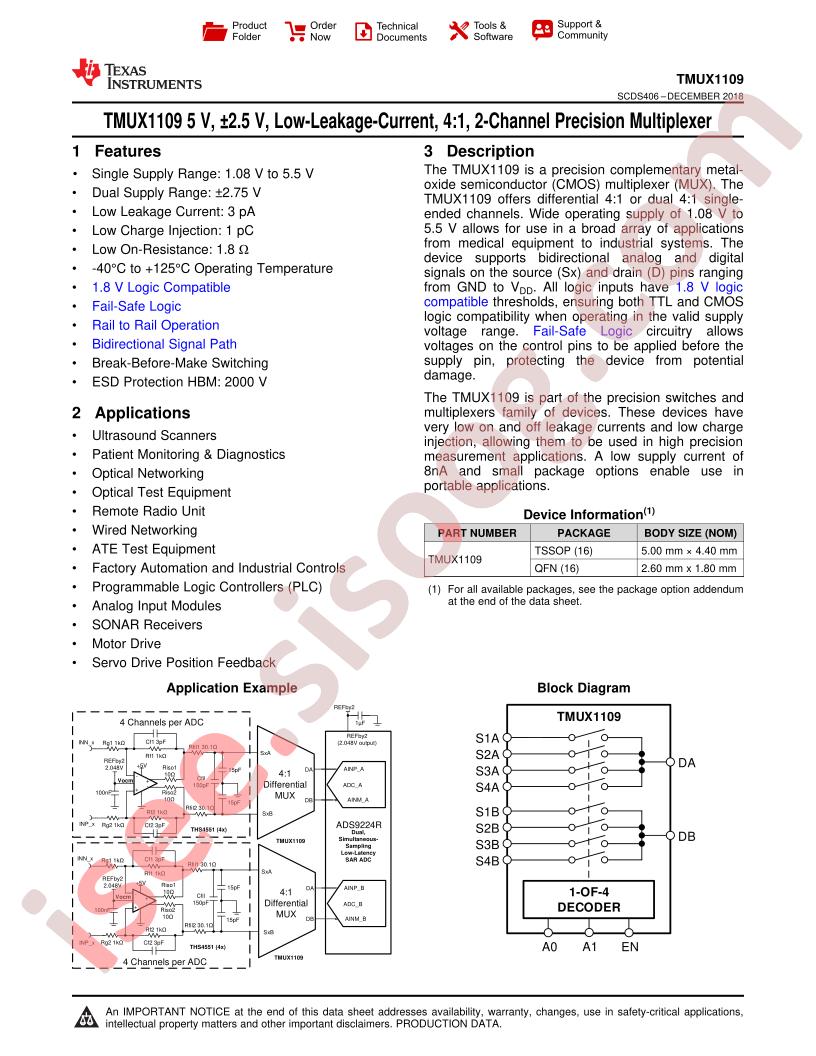

دیتاشیت TMUX1109PWR
مشخصات دیتاشیت
| نام دیتاشیت |
TMUX1109
|
| حجم فایل |
1526.029
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
41
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Texas Instruments TMUX1109PWR
-
Turn-on time:
12ns
-
Turn-off time:
6ns
-
Switch Circuit:
双刀四掷(DP4T)
-
Number of Channels:
2
-
On-State Resistance (Max):
4Ω
-
Package:
TSSOP-16
-
Manufacturer:
Texas Instruments
-
Crosstalk:
-90dB ~ -80dB @ 1MHz ~ 10MHz
-
Multiplexer/Demultiplexer Circuit:
4:1
-
Supplier Device Package:
16-TSSOP
-
-3db Bandwidth:
135MHz
-
Switch Time (Ton, Toff) (Max):
12ns, 6ns (Typ)
-
Series:
-
-
Current - Leakage (IS(off)) (Max):
80pA
-
Mounting Type:
Surface Mount
-
Charge Injection:
-1pC
-
Channel Capacitance (CS(off), CD(off)):
7.5pF, 32pF
-
Packaging:
Cut Tape (CT)
-
Operating Temperature:
-40°C ~ 125°C (TA)
-
Number of Circuits:
2
-
Voltage - Supply, Dual (V±):
±2.75V
-
Channel-to-Channel Matching (ΔRon):
180mOhm
-
Base Part Number:
TMUX11
-
Part Status:
Active
-
Package / Case:
16-TSSOP (0.173", 4.40mm Width)
-
detail:
2 Circuit IC Switch 4:1 4Ohm 16-TSSOP
