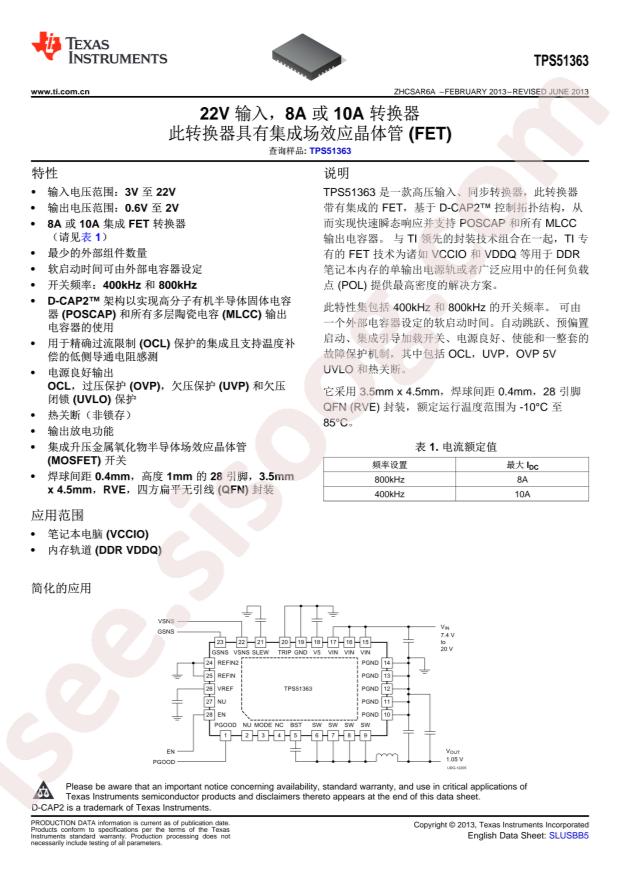

دیتاشیت TPS51363RVER
مشخصات دیتاشیت
| نام دیتاشیت |
TPS51363
|
| حجم فایل |
2066.585
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
32
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Texas Instruments TPS51363RVER
-
Output Type:
Adjustable
-
Input Voltage:
3V~22V
-
Number of Outputs:
1
-
Switching Frequency:
400kHz;800kHz
-
Output Current (Max):
10A;8A
-
Operating Temperature:
-10°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
QFN-28-EP(3.5x4.5)
-
Manufacturer:
Texas Instruments
-
Supplier Device Package:
28-VQFN-CLIP (4.5x3.5)
-
Voltage - Input (Min):
3V
-
Voltage - Output (Max):
2V
-
Output Configuration:
Positive
-
Mounting Type:
Surface Mount
-
Current - Output:
10A, 8A
-
Synchronous Rectifier:
Yes
-
Frequency - Switching:
400kHz, 800kHz
-
Packaging:
Cut Tape (CT)
-
Voltage - Output (Min/Fixed):
0.6V (1.05V, 1.2V, 1.35V, 1.5V)
-
Series:
D-CAP2™
-
Base Part Number:
TPS513
-
Voltage - Input (Max):
22V
-
Part Status:
Active
-
Package / Case:
28-VFQFN Exposed Pad
-
detail:
Buck Switching Regulator IC Positive Adjustable (Programmable) 0.6V (1.05V, 1.2V, 1.35V, 1.5V) 1 Output 10A, 8A 28-VFQFN Exposed Pad
