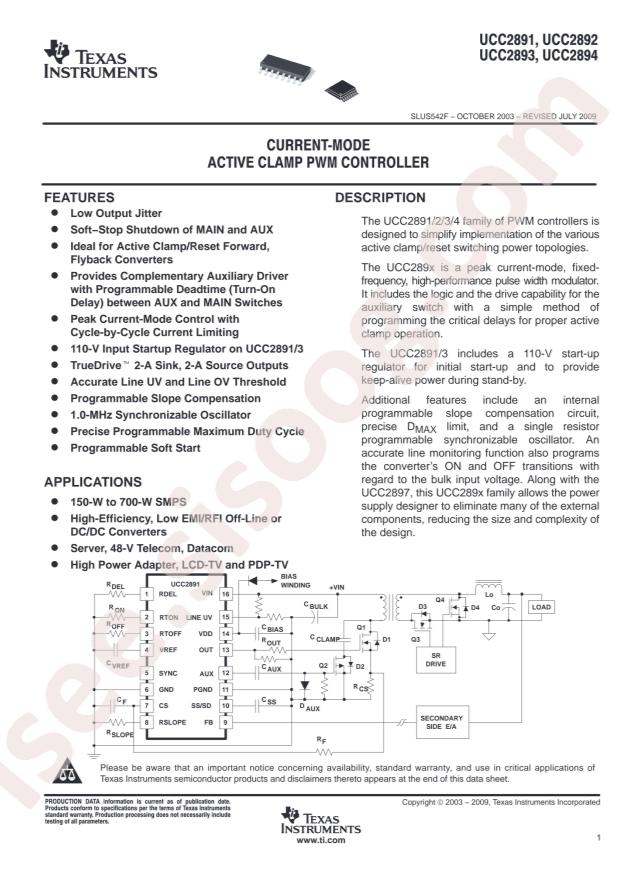

UCC2894PW دیتاشیت

UCC2894PW

مشخصات دیتاشیت

نام دیتاشیت UCC2894PW
حجم فایل 97.838 کیلوبایت
نوع فایل pdf
تعداد صفحات 42

دانلود دیتاشیت UCC2894PW

دانلود دیتاشیت

سایر مستندات

UCC2891-94 41 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Controllers
  • Datasheet: Texas Instruments UCC2894PW
  • Package: TSSOP-16
  • Manufacturer: Texas Instruments
  • Voltage - Supply (Vcc/Vdd): 8.5V ~ 16V
  • Base Part Number: UCC289
  • Voltage - Breakdown: -
  • Voltage - Start Up: 12.7V
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 105°C (TJ)
  • Internal Switch(s): No
  • Fault Protection: Current Limiting
  • Topology: Flyback, Forward
  • Frequency - Switching: 1MHz
  • Packaging: Tube
  • Duty Cycle: 70%
  • Series: -
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Output Isolation: Isolated
  • Part Status: Active
  • Supplier Device Package: 16-TSSOP
  • Control Features: Soft Start, Sync
  • detail: Converter Offline Flyback, Forward Topology 1MHz 16-TSSOP
