دیتاشیت VND600PEP-E

VND600PEP-E

مشخصات دیتاشیت

نام دیتاشیت VND600PEP-E
حجم فایل 631.062 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت VND600PEP-E

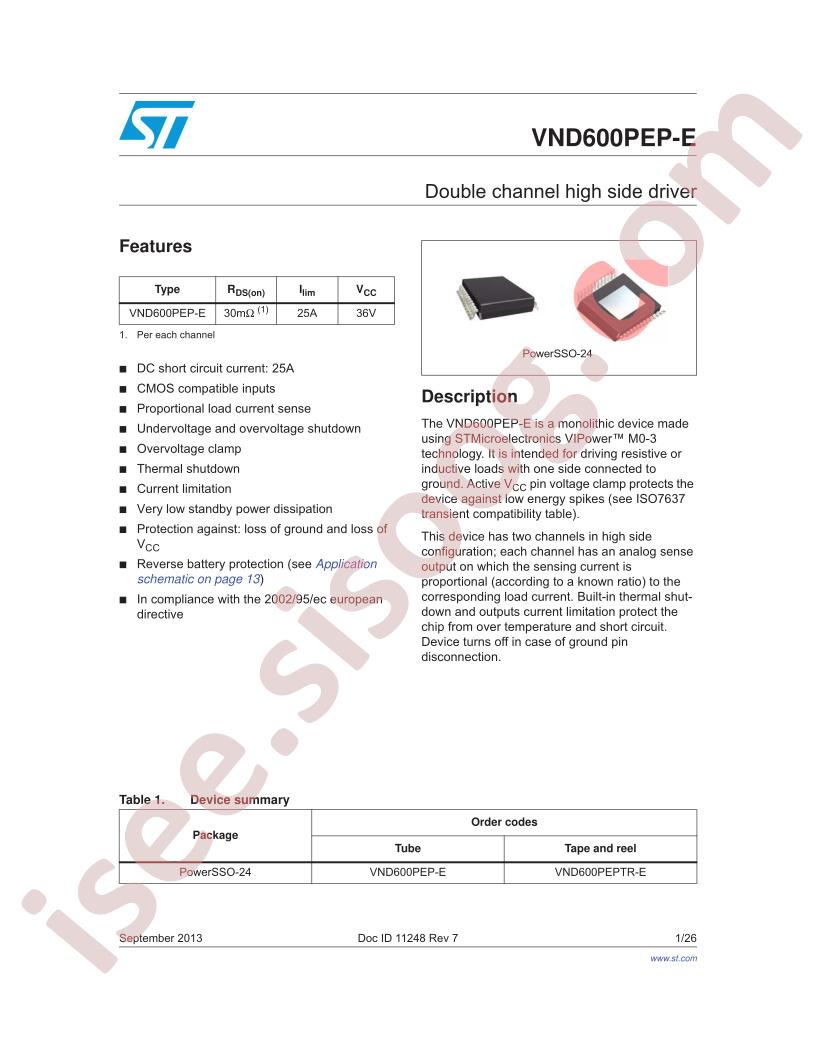

VND600PEP-E Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Package: PowerSSO-24
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Switch Type: General Purpose
  • Number of Outputs: 2
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 5.5V ~ 36V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 25A
  • Rds On (Typ): 30mOhm (Max)
  • Input Type: Non-Inverting
  • Features: -
  • Fault Protection: Current Limiting (Fixed), Over Temperature, Over Voltage
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PowerSSO-24
  • Package / Case: 24-PowerBSOP (0.295", 7.50mm Width)
  • Base Part Number: VND600
  • detail: Power Switch/Driver 1:1 N-Channel 25A PowerSSO-24
