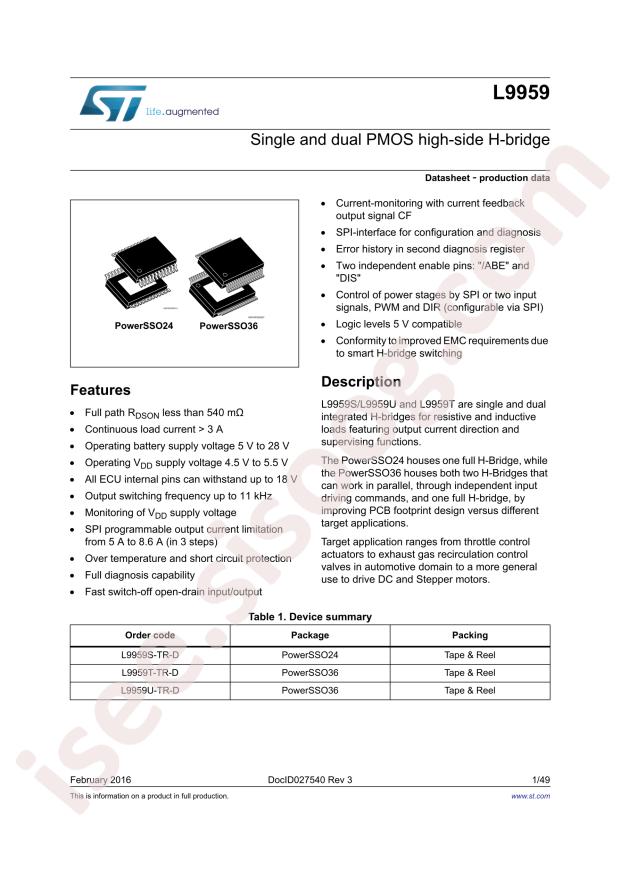

دیتاشیت L9959S-TR-D
مشخصات دیتاشیت
| نام دیتاشیت |
L9959x
|
| حجم فایل |
842.779
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
49
|
مشخصات
-
RoHS:
true
-
Feature:
Thermal Protection(OPT);Short-Circuit Protection(SCP)
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
STMicroelectronics L9959S-TR-D
-
Load Type:
MOSFET
-
Supply Voltage:
4.5V~5.5V
-
Driven Configuration:
Half Bridge
-
Operating Temperature:
-40°C~+150°C@(Tj)
-
Package:
PowerSSO-24-EP
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Output Configuration:
Half Bridge (2)
-
Applications:
General Purpose
-
Interface:
SPI
-
Technology:
PMOS
-
Rds On (Typ):
-
-
Current - Output / Channel:
3A
-
Current - Peak Output:
-
-
Voltage - Supply:
4.5V ~ 5.5V
-
Voltage - Load:
5V ~ 28V
-
Features:
-
-
Fault Protection:
Over Temperature, Short Circuit
-
Mounting Type:
Surface Mount
-
Package / Case:
24-BSOP (0.295", 7.50mm Width) Exposed Pad
-
Supplier Device Package:
PowerSSO-24 Exposed Bottom Pad
-
Base Part Number:
L9959
-
detail:
Half Bridge (2) Driver General Purpose PMOS PowerSSO-24 Exposed Bottom Pad
