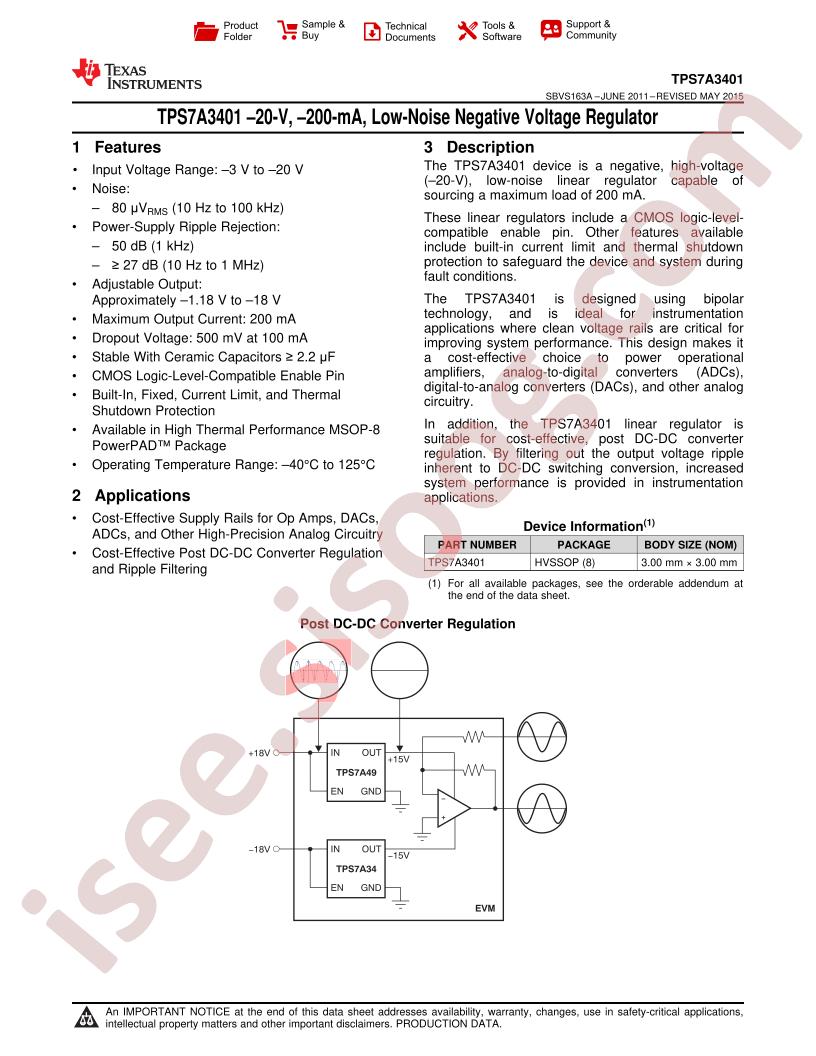

TPS7A3401 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS7A3401
|
|
حجم فایل
|
1140.129
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
28
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS7A3401DGNT
-
Output Type:
Adjustable
-
Output Current:
200mA
-
Output Voltage:
1.18V~18V
-
Dropout Voltage:
0.8V@(200mA)
-
Output Polarity:
Negative
-
Number of Outputs:
1
-
Maximum Input Voltage:
20V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
100uA
-
Power Supply Rejection Ratio (PSRR):
50dB@(1kHz)
-
Package:
MSOP-8
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Voltage - Output (Max):
-18V
-
Output Configuration:
Negative
-
Voltage Dropout (Max):
0.8V @ 200mA
-
Packaging:
Cut Tape (CT)
-
Voltage - Output (Min/Fixed):
-1.18V
-
Protection Features:
Over Current, Over Temperature
-
PSRR:
50dB (1kHz)
-
Supplier Device Package:
8-MSOP-PowerPad
-
Current - Quiescent (Iq):
100µA
-
Base Part Number:
TPS7A3
-
Mounting Type:
Surface Mount
-
Number of Regulators:
1
-
Voltage - Input (Max):
-20V
-
Current - Output:
200mA
-
Part Status:
Active
-
Current - Supply (Max):
950µA
-
Control Features:
Enable
-

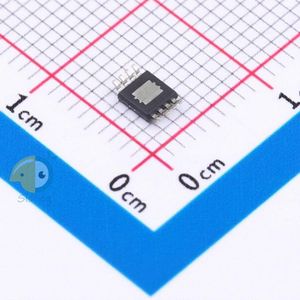

Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
-
detail:
Linear Voltage Regulator IC 1 Output 200mA 8-MSOP-PowerPad
