VNH7070AYTR دیتاشیت

VNH7070AYTR

مشخصات دیتاشیت

نام دیتاشیت VNH7070AYTR
حجم فایل 89.781 کیلوبایت
نوع فایل pdf
تعداد صفحات 48

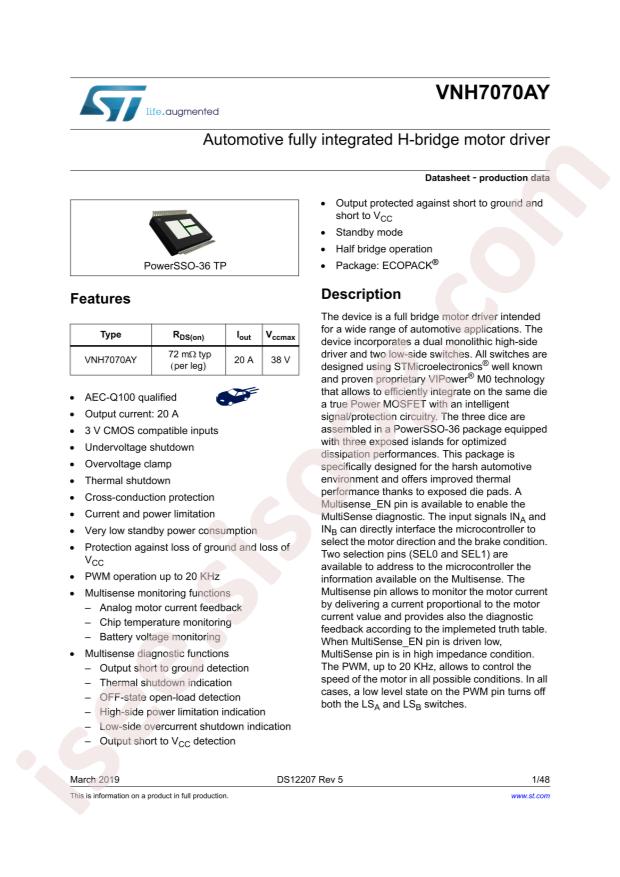

مشاهده دیتاشیت VNH7070AYTR

دانلود دیتاشیت

سایر مستندات

VNH7070AY 48 pages

مشخصات فنی

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: STMicroelectronics VNH7070AYTR
  • Interface: PWM
  • Output Current: 20A
  • Supply Voltage: 4V~28V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: PowerSSO-36
  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q100
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushed DC
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (2)
  • Technology: Power MOSFET
  • Step Resolution: -
  • Applications: Automotive
  • Current - Output: 20A
  • Voltage - Supply: 4V ~ 28V
  • Voltage - Load: -
  • Mounting Type: Surface Mount
  • Package / Case: 36-PowerBFSOP (0.295", 7.50mm Width)
  • Supplier Device Package: PowerSSO-36
  • detail: Motor Driver Power MOSFET PWM PowerSSO-36
