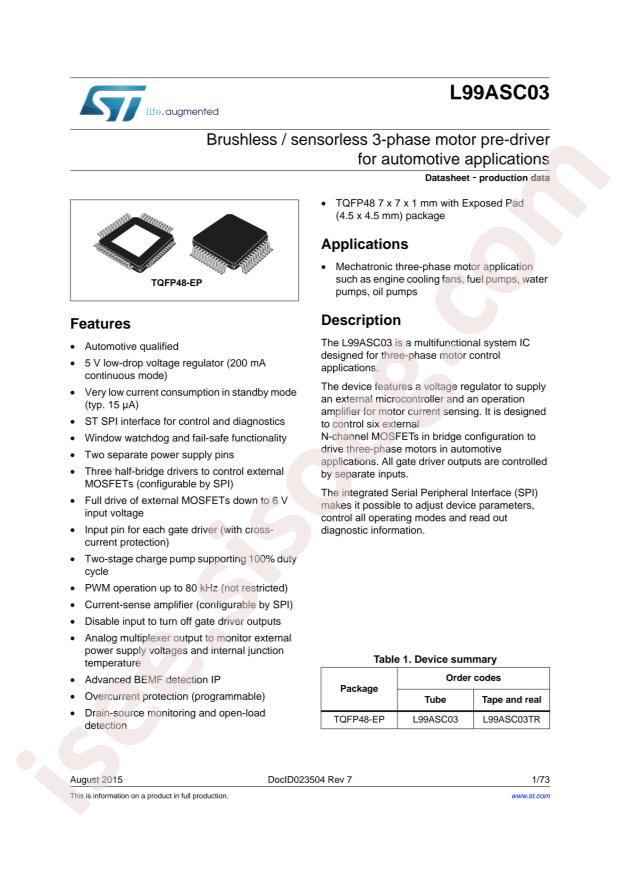

L99ASC03TR دیتاشیت

L99ASC03TR

مشخصات دیتاشیت

نام دیتاشیت L99ASC03TR
حجم فایل 78.183 کیلوبایت
نوع فایل pdf
تعداد صفحات 73

دانلود دیتاشیت L99ASC03TR

دانلود دیتاشیت

سایر مستندات

Smart Power Solutions for Car Body Appl 28 pages

L99ASC03 73 pages

مشخصات فنی

  • RoHS: true
  • Type: 无刷直流BLDC
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: STMicroelectronics L99ASC03TR
  • Interface: SPI,STEP/DIR
  • Output Current: -
  • Supply Voltage: 6V~28V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: TQFP-48(7x7)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushless DC (BLDC)
  • Function: Controller - Commutation, Direction Management
  • Output Configuration: Pre-Driver - Half Bridge (3)
  • Technology: -
  • Step Resolution: -
  • Applications: Automotive
  • Current - Output: -
  • Voltage - Supply: 6V ~ 28V
  • Voltage - Load: -
  • Mounting Type: Surface Mount
  • Package / Case: 48-TQFP Exposed Pad
  • Supplier Device Package: 48-TQFP-EP (7x7)
  • Base Part Number: L99A
  • detail: Motor Driver SPI 48-TQFP-EP (7x7)
