- دیتاشیت ISO7321FCQDRQ1
ISO7321FCQDRQ1 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | ISO7321FCQDRQ1 |
|---|---|
| حجم فایل | 119.1 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت ISO7321FCQDRQ1 |
دانلود دیتاشیت |
|---|
سایر مستندات

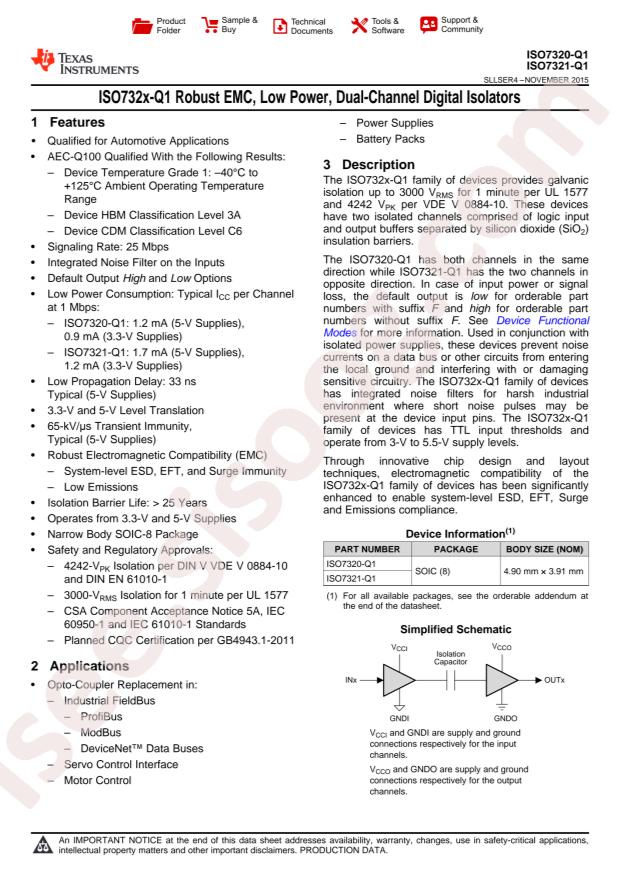

ISO7320-Q1, ISO7321-Q1 Datasheet 28 pages
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Digital Isolators
- Data Rate: 25Mbps
- Datasheet: Texas Instruments ISO7321FCQDRQ1
- Applications: General-purpose
- Supply Voltage: 3V~5.5V
- Forward Channel: 1
- Reverse channel: 1
- Number of Channels: 2
- Isolation Technology: 电容隔离
- Operating Temperature: -40°C~+125°C
- Voltage Isolation or Not: Without voltage isolation
- Package: SOP-8
- Manufacturer: Texas Instruments
- Channel Type: Unidirectional
- Pulse Width Distortion (Max): 4ns
- Type: General Purpose
- Isolated Power: No
- Series: Automotive, AEC-Q100
- Packaging: Cut Tape (CT)
- Voltage - Supply: 3V ~ 5.5V
- Propagation Delay tpLH / tpHL (Max): 57ns, 57ns
- Common Mode Transient Immunity (Min): 25kV/µs
- Technology: Capacitive Coupling
- Supplier Device Package: 8-SOIC
- Base Part Number: ISO732
- Inputs - Side 1/Side 2: 1/1
- Voltage - Isolation: 3000Vrms
- Mounting Type: Surface Mount
- Part Status: Active
- Rise / Fall Time (Typ): 2.4ns, 2.1ns
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- detail: General Purpose Digital Isolator 3000Vrms 2 Channel 25Mbps 25kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
