TPS63710DRRT 数据手册
其他文档

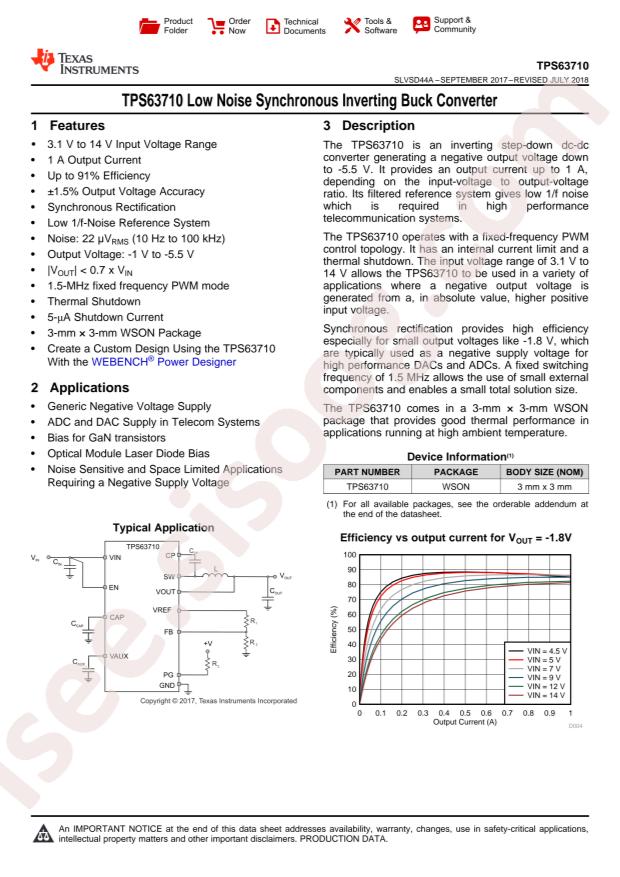

TPS63710 Datasheet 36 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Texas Instruments TPS63710DRRT
- Output Type: Adjustable
- Input Voltage: 3.1V~14V
- Output Voltage: -
- Number of Outputs: 1
- Switching Frequency: 1.5MHz
- Output Current (Max): 1A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: SON-12-EP(3x3)
- Manufacturer: Texas Instruments
- Supplier Device Package: 12-SON (3x3)
- Voltage - Input (Min): 3.1V
- Voltage - Output (Max): -5.5V
- Output Configuration: Negative
- Mounting Type: Surface Mount
- Current - Output: 1A
- Synchronous Rectifier: Yes
- Frequency - Switching: 1.5MHz
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): -1V
- Series: -
- Base Part Number: TPS637
- Voltage - Input (Max): 14V
- Part Status: Active
- Package / Case: 12-WFDFN Exposed Pad
- detail: Buck Switching Regulator IC Negative Adjustable -1V 1 Output 1A 12-WFDFN Exposed Pad
