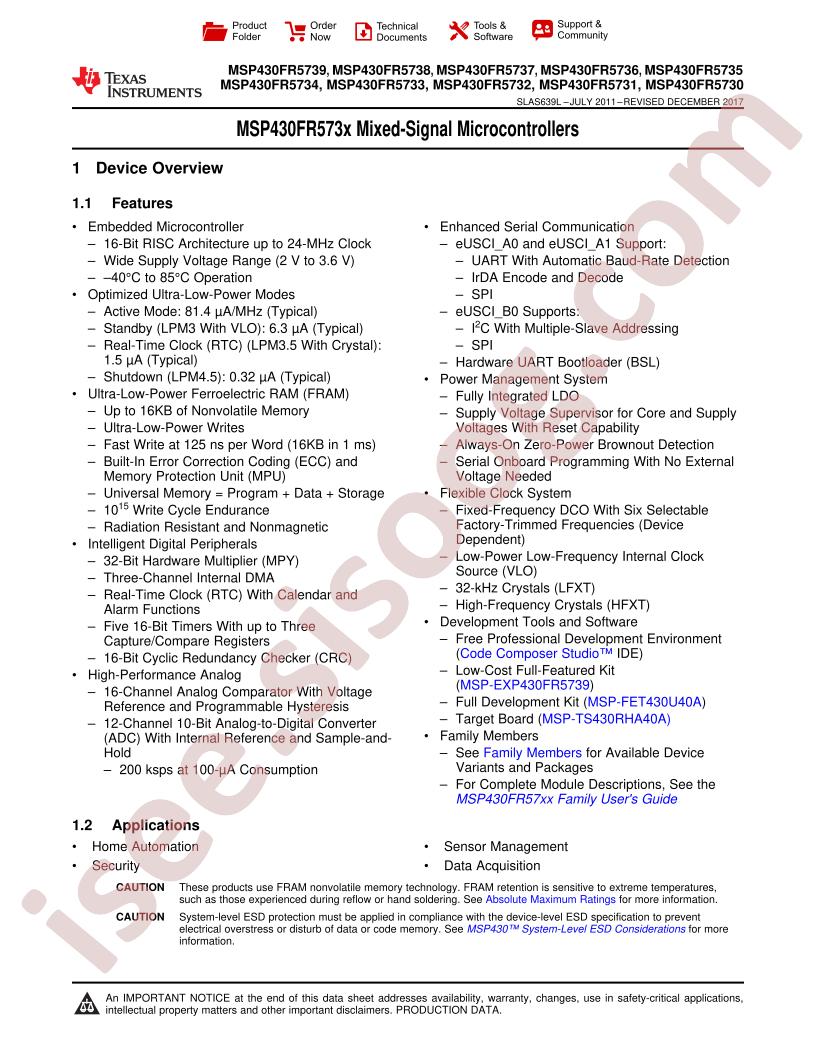

MSP430FR573x Datasheet دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MSP430FR573x Datasheet |
|---|---|
| حجم فایل | 3940.385 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 119 |
دانلود دیتاشیت MSP430FR573x Datasheet |
دانلود دیتاشیت |
|---|
سایر مستندات
مشخصات فنی
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: MSP430
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 1KB
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Texas Instruments MSP430FR5738IPWR
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 24MHz
- GPIO Ports Number: 21
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: WDT;LIN(Local Interconnect Network);IrDA
- Program Memory Type: FRAM
- Direct Memory Access: -
- Program Storage Size: 16KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: TSSOP-28
- Manufacturer: Texas Instruments
- Series: MSP430™ FRAM
- EEPROM Size: -
- Oscillator Type: Internal
- Mounting Type: Surface Mount
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Data Converters: A/D 10x10b
- Packaging: Cut Tape (CT)
- Core Processor: CPUXV2
- Number of I/O: 21
- Program Memory Size: 16KB (16K x 8)
- Core Size: 16-Bit
- Connectivity: I²C, IrDA, LINbus, SCI, SPI, UART/USART
- Voltage - Supply (Vcc/Vdd): 2V ~ 3.6V
- Supplier Device Package: 28-TSSOP
- Base Part Number: 430FR5738
- Package / Case: 28-TSSOP (0.173", 4.40mm Width)
- Speed: 24MHz
- Part Status: Active
- Operating Temperature: -40°C ~ 85°C (TA)
- detail: CPUXV2 MSP430™ FRAM Microcontroller IC 16-Bit 24MHz 16KB (16K x 8) FRAM 28-TSSOP
