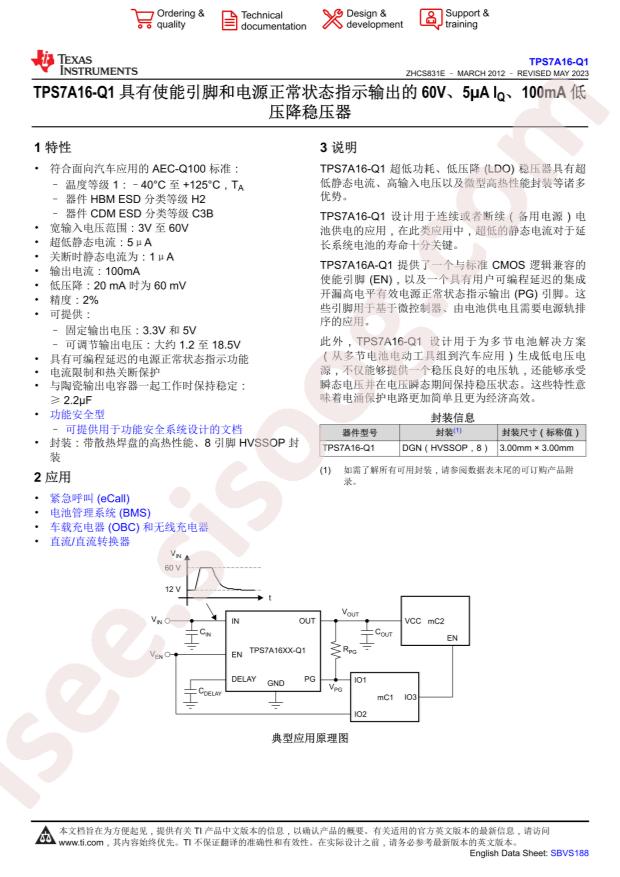

دیتاشیت TPS7A1601QDGNRQ1
مشخصات دیتاشیت
| نام دیتاشیت |
TPS7A16xx-Q1
|
| حجم فایل |
1289.309
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
29
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:

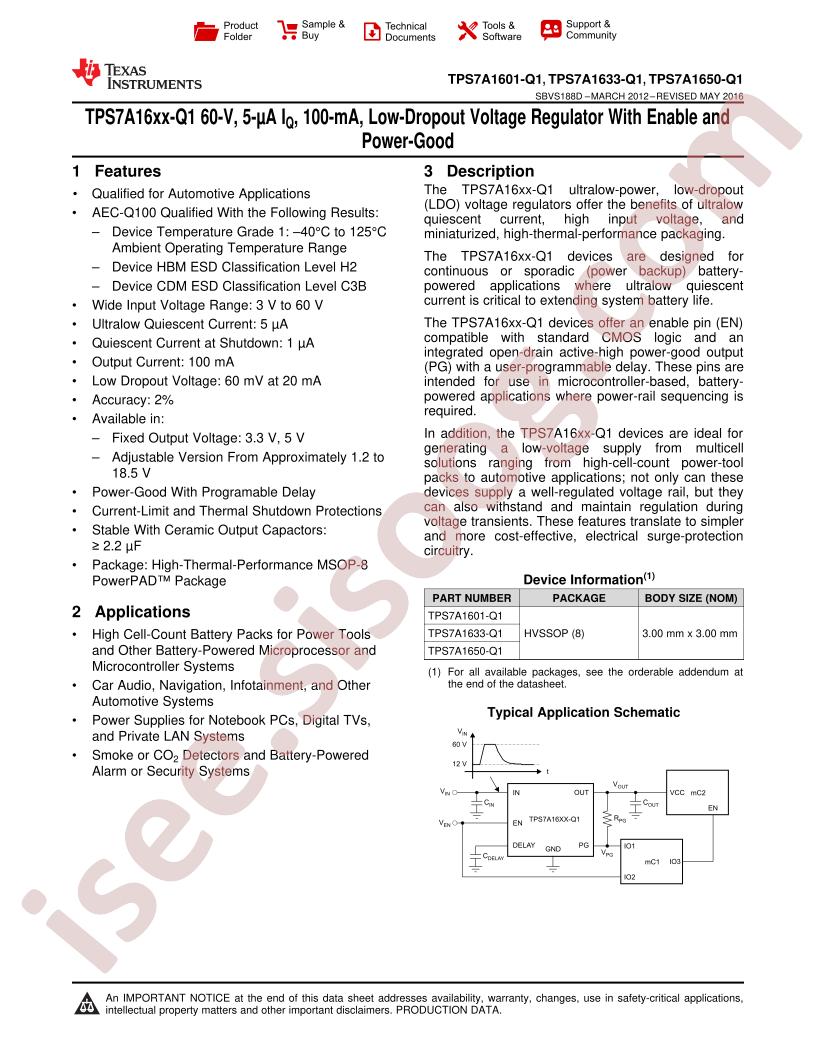

Texas Instruments TPS7A1601QDGNRQ1
-
Output Type:
Adjustable
-
Output Current:
100mA
-
Output Voltage:
1.2V~18.5V
-
Dropout Voltage:
0.5V@(100mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
60V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
15uA
-
Power Supply Rejection Ratio (PSRR):
50dB@(100Hz)
-
Package:
MSOP-8
-
Manufacturer:
Texas Instruments
-
Base Part Number:
TPS7A1
-
Supplier Device Package:
8-MSOP-PowerPad
-
Voltage - Output (Max):
18.5V
-
Output Configuration:
Positive
-
Current - Quiescent (Iq):
15µA
-
PSRR:
50dB (100Hz)
-
Voltage Dropout (Max):
0.5V @ 100mA
-
Number of Regulators:
1
-
Mounting Type:
Surface Mount
-
Packaging:
Cut Tape (CT)
-
Voltage - Output (Min/Fixed):
1.2V
-
Protection Features:
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
-
Series:
Automotive, AEC-Q100
-
Voltage - Input (Max):
60V
-
Current - Output:
100mA
-
Part Status:
Active
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
-
Control Features:
Enable, Power Good
-
detail:
Linear Voltage Regulator IC 1 Output 100mA 8-MSOP-PowerPad
