دیتاشیت L9352B-TR-LF

L9352B

مشخصات دیتاشیت

نام دیتاشیت L9352B
حجم فایل 336.617 کیلوبایت
نوع فایل pdf
تعداد صفحات 27

دانلود دیتاشیت L9352B

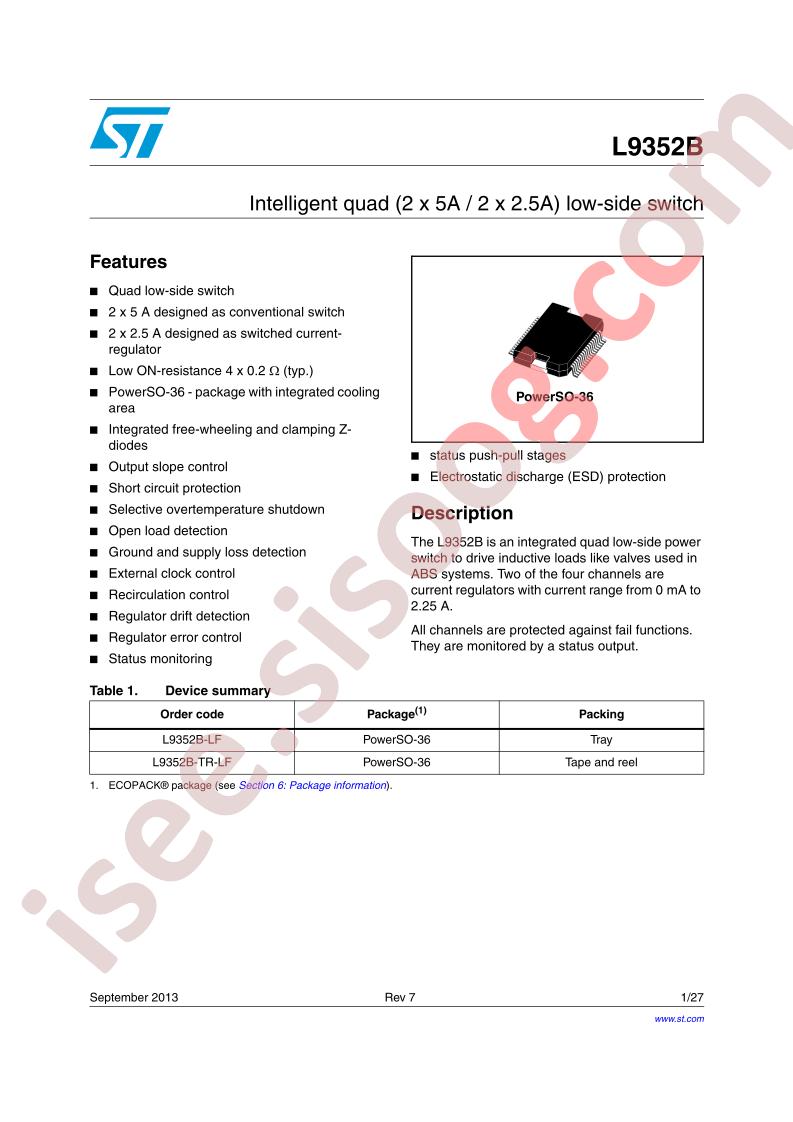

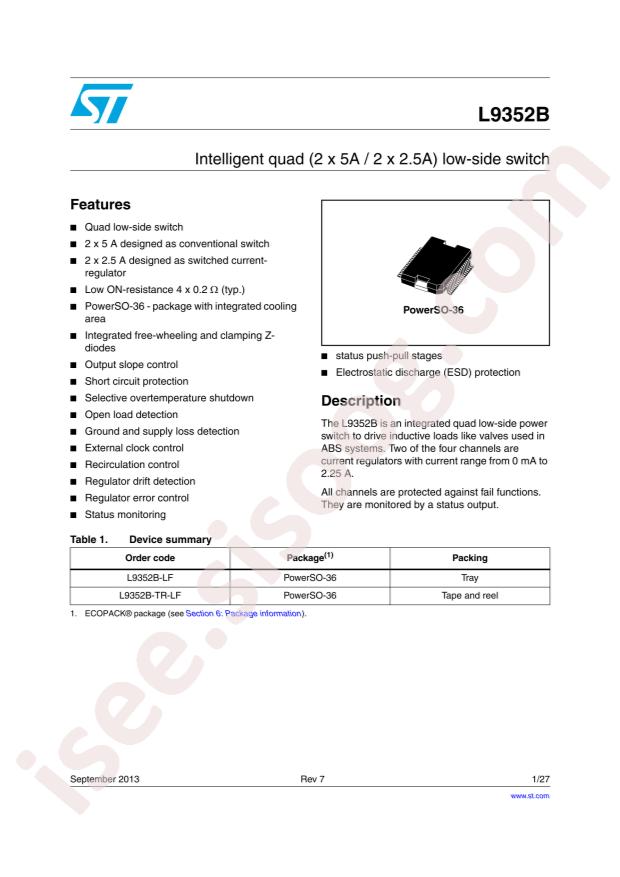

L9352B Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: STMicroelectronics L9352B-TR-LF
  • Input Voltage: 4.8V~18V
  • Output Current: 2.5A;5A
  • Number of Outputs: 4
  • Resistor On-State: 200mΩ
  • Operating Temperature -: -40°C~+150°C
  • Package: PowerSO-36
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Switch Type: General Purpose
  • Ratio - Input:Output: 1:1
  • Output Configuration: Low Side
  • Output Type: N-Channel
  • Interface: -
  • Voltage - Load: 4.8V ~ 18V
  • Voltage - Supply (Vcc/Vdd): 4.5V ~ 5.5V
  • Current - Output (Max): 2.5A, 5A
  • Rds On (Typ): 200mOhm
  • Input Type: Non-Inverting
  • Features: Status Flag
  • Fault Protection: Open Load Detect, Over Temperature
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PowerSO-36
  • Package / Case: 36-BSSOP (0.433", 11.00mm Width) Exposed Pad
  • Base Part Number: L9352
  • detail: Power Switch/Driver 1:1 N-Channel 2.5A, 5A PowerSO-36
