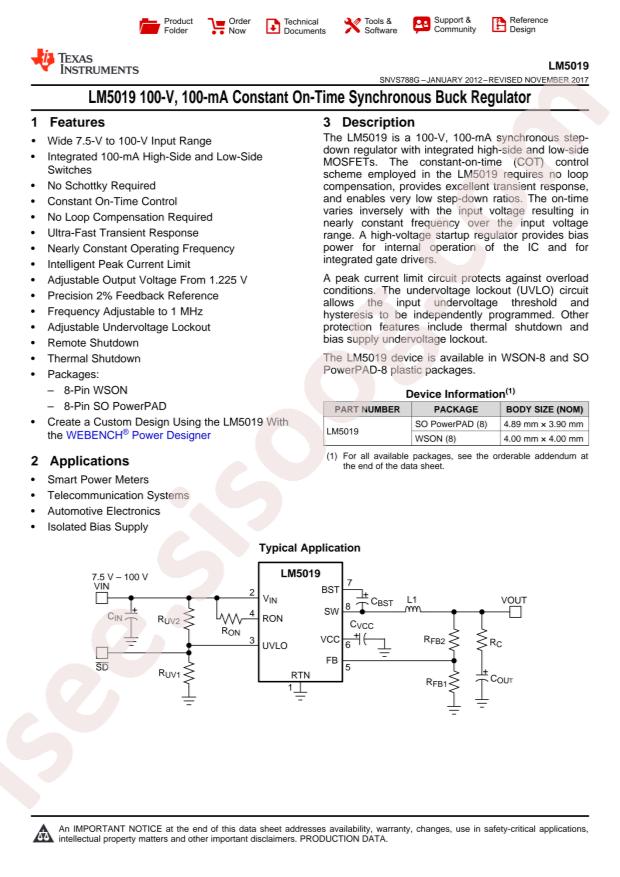

LM5019MRX/NOPB دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LM5019MRX/NOPB
|
|
حجم فایل
|
96.448
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
35
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Texas Instruments LM5019MRX/NOPB
-
Output Type:
Adjustable
-
Input Voltage:
7.5V~100V
-
Output Voltage:
1.225V~90V
-
Number of Outputs:
1
-
Switching Frequency:
1MHz
-
Output Current (Max):
100mA
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
Yes
-

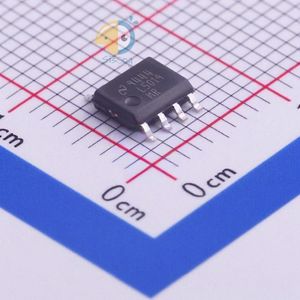

Package:
SO-8-EP
-
Manufacturer:
Texas Instruments
-
Supplier Device Package:
8-SO PowerPad
-
Voltage - Input (Min):
7.5V
-
Voltage - Output (Max):
90V
-
Output Configuration:
Positive
-
Mounting Type:
Surface Mount
-
Current - Output:
100mA
-
Synchronous Rectifier:
Yes
-
Frequency - Switching:
Adj to 1MHz
-
Packaging:
Cut Tape (CT)
-
Voltage - Output (Min/Fixed):
1.225V
-
Series:
-
-
Base Part Number:
LM5019
-
Voltage - Input (Max):
100V
-
Part Status:
Active
-
Package / Case:
8-PowerSOIC (0.154", 3.90mm Width)
-
detail:
Buck Switching Regulator IC Positive Adjustable 1.225V 1 Output 100mA 8-PowerSOIC (0.154", 3.90mm Width)
