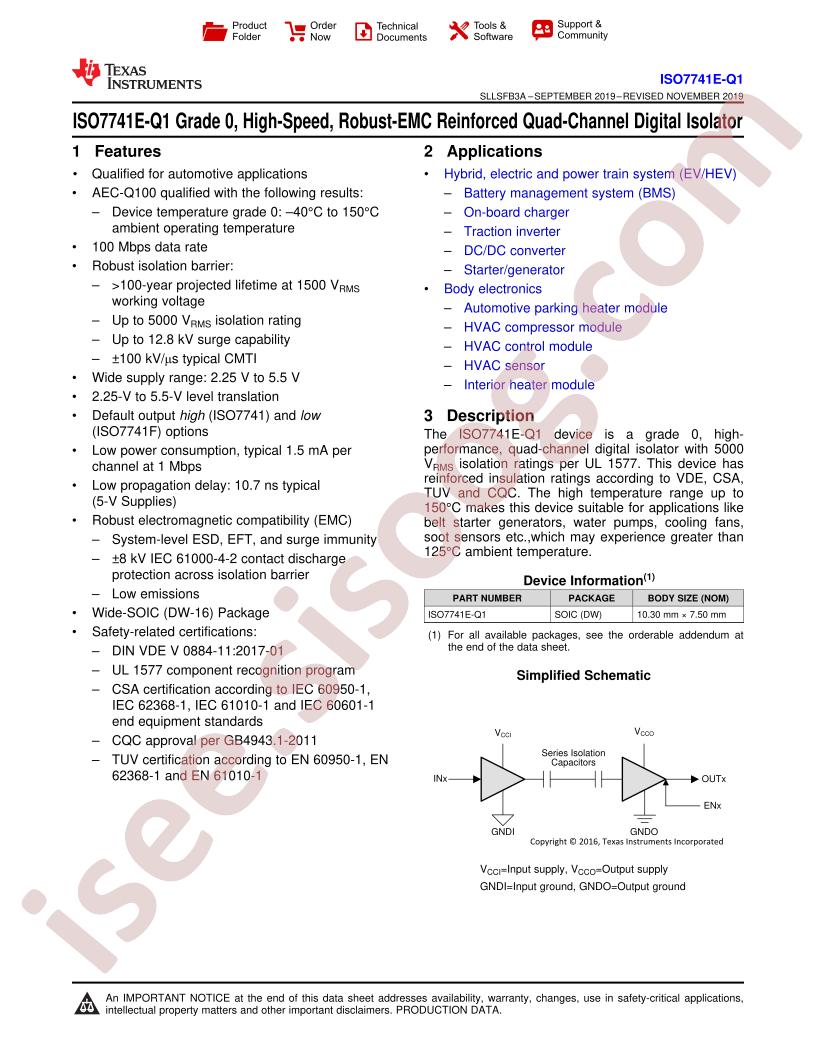

دیتاشیت ISO7741EDWRQ1
مشخصات دیتاشیت
| نام دیتاشیت |
ISO7741E-Q1
|
| حجم فایل |
1724.365
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
34
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Digital Isolators
-
Data Rate:
100Mbps
-
Datasheet:
Texas Instruments ISO7741EDWRQ1
-
Applications:
General-purpose
-
Supply Voltage:
2.25V~5.5V
-
Forward Channel:
3
-
Reverse channel:
1
-
Number of Channels:
4
-
Isolation Technology:
电容隔离
-
Operating Temperature:
-40°C~+150°C
-
Voltage Isolation or Not:
Without voltage isolation
-
Package:
SOP-16-300mil
-
Manufacturer:
Texas Instruments
-
Channel Type:
Unidirectional
-
Pulse Width Distortion (Max):
4.9ns
-
Type:
General Purpose
-
Supplier Device Package:
16-SOIC
-
Voltage - Supply:
2.25V ~ 5.5V
-
Isolated Power:
No
-
Mounting Type:
Surface Mount
-
Inputs - Side 1/Side 2:
3/1
-
Voltage - Isolation:
5000Vrms
-
Base Part Number:
ISO774
-
Rise / Fall Time (Typ):
2.4ns, 2.4ns
-
Propagation Delay tpLH / tpHL (Max):
16.5ns, 16.5ns
-
Series:
Automotive, AEC-Q100
-
Package / Case:
16-SOIC (0.295", 7.50mm Width)
-
Common Mode Transient Immunity (Min):
85kV/µs
-
Part Status:
Active
-
Technology:
Capacitive Coupling
-
detail:
General Purpose Digital Isolator 5000Vrms 4 Channel 100Mbps 85kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
