دیتاشیت VN380SP-E

VN380SP

مشخصات دیتاشیت

نام دیتاشیت VN380SP
حجم فایل 201.002 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت VN380SP

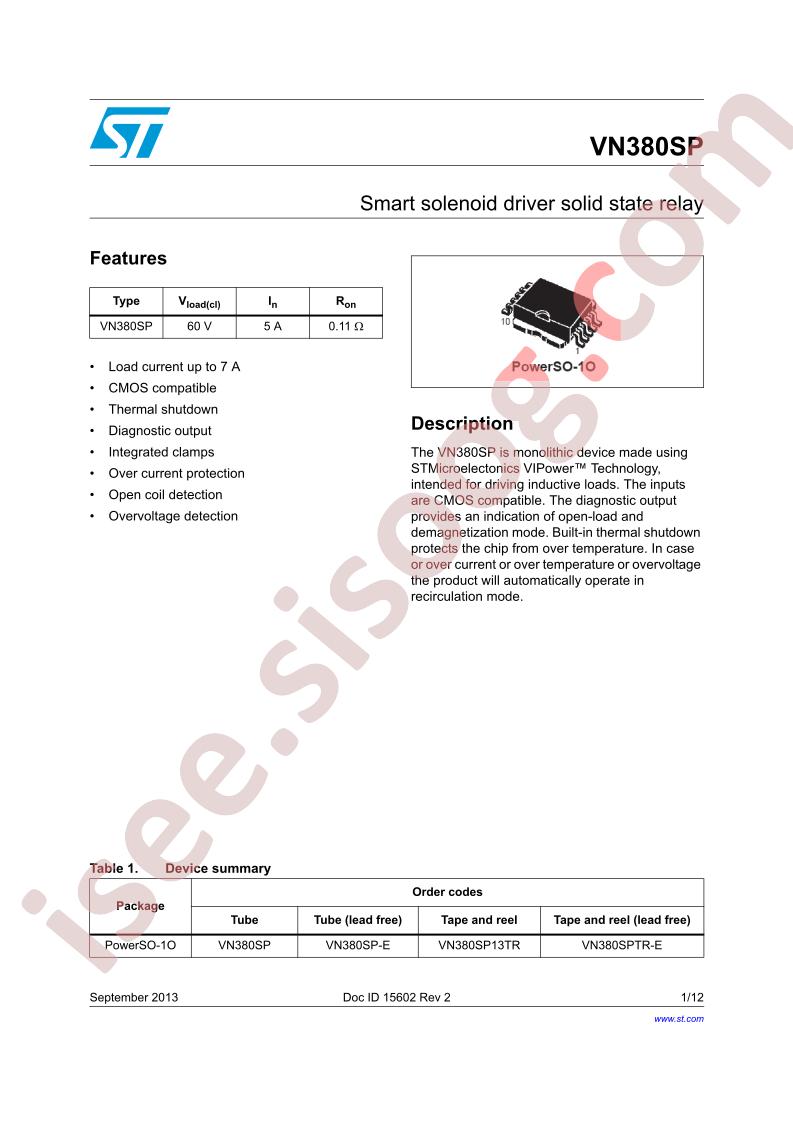

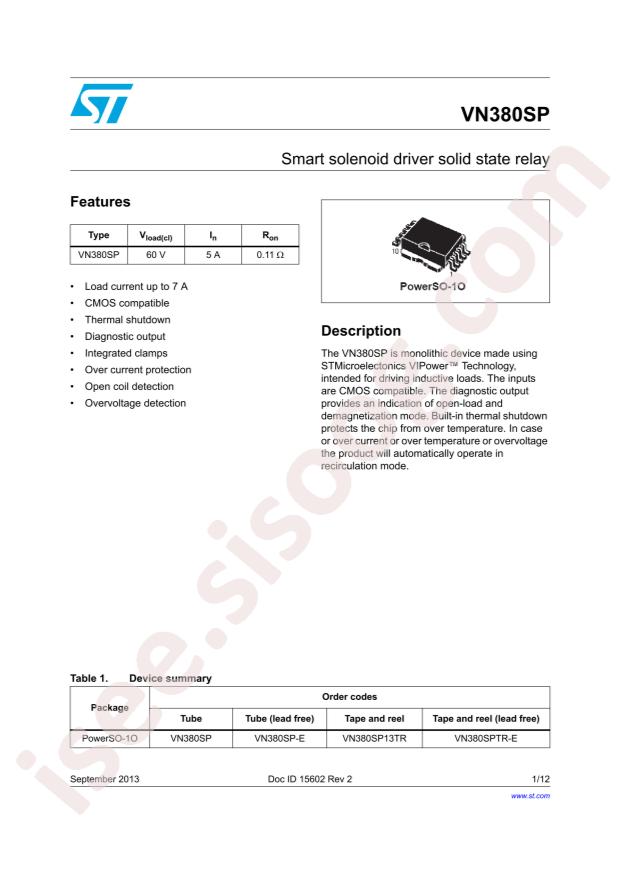

VN380SP Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: VIPower™
  • Packaging: Tube
  • Part Status: Active
  • Switch Type: Relay, Solenoid Driver
  • Number of Outputs: 1
  • Ratio - Input:Output: 2:1
  • Output Configuration: High Side
  • Output Type: Bipolar
  • Interface: On/Off
  • Voltage - Load: 6V ~ 24V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 5A
  • Rds On (Typ): 110mOhm
  • Input Type: -
  • Features: Status Flag
  • Fault Protection: Open Load Detect, Over Temperature, Over Voltage
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 10-PowerSO
  • Package / Case: PowerSO-10 Exposed Bottom Pad
  • Base Part Number: VN380
  • detail: Power Switch/Driver 2:1 Bipolar 5A 10-PowerSO
