UCC21521CDWR 数据手册
其他文档

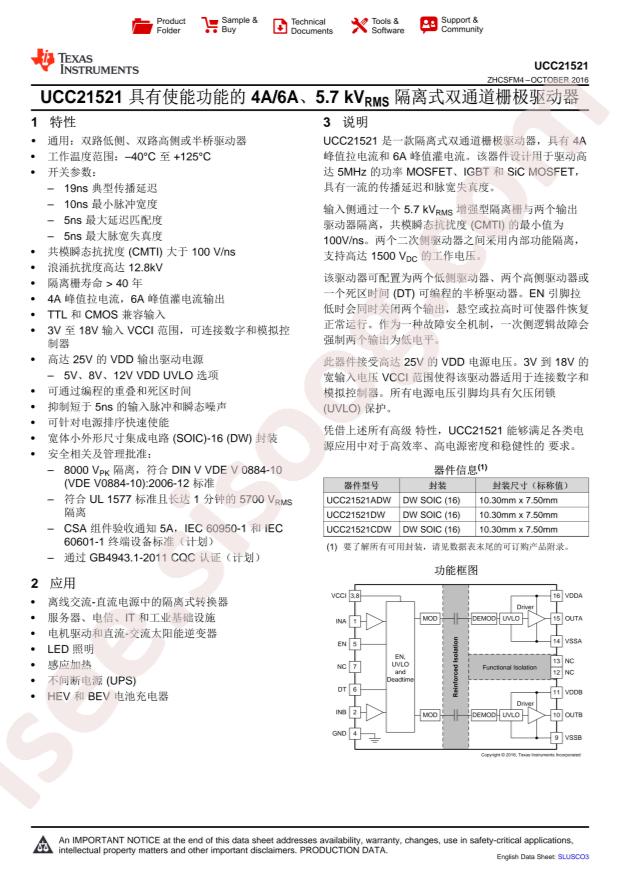

UCC21521 Datasheet 47 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Texas Instruments UCC21521CDWR
- Fall Time: 7ns
- Rise Time: 6ns
- Number of Drivers: 2
- Operating Temperature: -40°C~+125°C
- Peak Output Current(sink): 6A
- Peak Output Current(source): 4A
- Package: SOP-16-300mil
- Manufacturer: Texas Instruments
- Pulse Width Distortion (Max): 5ns
- Current - Peak Output: -
- Supplier Device Package: 16-SOIC
- Number of Channels: 2
- Mounting Type: Surface Mount
- Voltage - Forward (Vf) (Typ): -
- Voltage - Output Supply: 3V ~ 18V
- Current - Output High, Low: 4A, 6A
- Voltage - Isolation: 5700Vrms
- Base Part Number: UCC215
- Packaging: Cut Tape (CT)
- Technology: Capacitive Coupling
- Propagation Delay tpLH / tpHL (Max): 30ns, 30ns
- Series: -
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Common Mode Transient Immunity (Min): 100V/ns
- Part Status: Active
- Rise / Fall Time (Typ): 6ns, 7ns
- detail: Gate Driver Capacitive Coupling 5700Vrms 2 Channel 16-SOIC
