- دیتاشیت STGWA15M120DF3
STGWA15M120DF3 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | STGWA15M120DF3 |
|---|---|
| حجم فایل | 62.67 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 19 |
دانلود دیتاشیت STGWA15M120DF3 |
دانلود دیتاشیت |
|---|
سایر مستندات

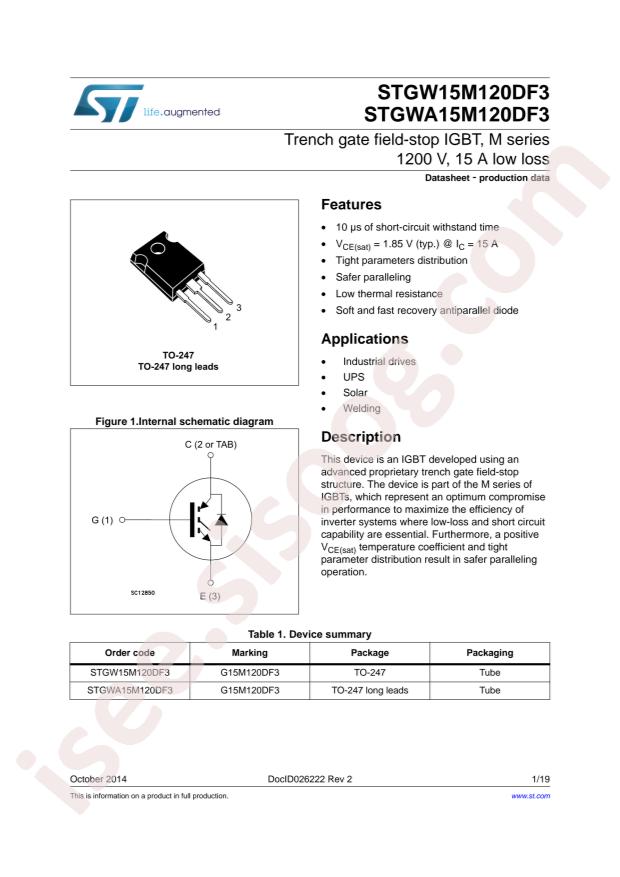

STGW(A)15M120DF3 19 pages
مشخصات فنی
- RoHS: true
- Category: Triode/MOS Tube/Transistor/IGBTs
- Datasheet: STMicroelectronics STGWA15M120DF3
- Package: TO-247
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200V
- Current - Collector (Ic) (Max): 30A
- Current - Collector Pulsed (Icm): 60A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 15A
- Power - Max: 259W
- Switching Energy: 550µJ (on), 850µJ (off)
- Input Type: Standard
- Gate Charge: 53nC
- Td (on/off) @ 25°C: 26ns/122ns
- Test Condition: 600V, 15A, 22Ohm, 15V
- Reverse Recovery Time (trr): 270ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247 Long Leads
- Base Part Number: STGWA15
- detail: IGBT Trench Field Stop 1200V 30A 259W Through Hole TO-247 Long Leads
