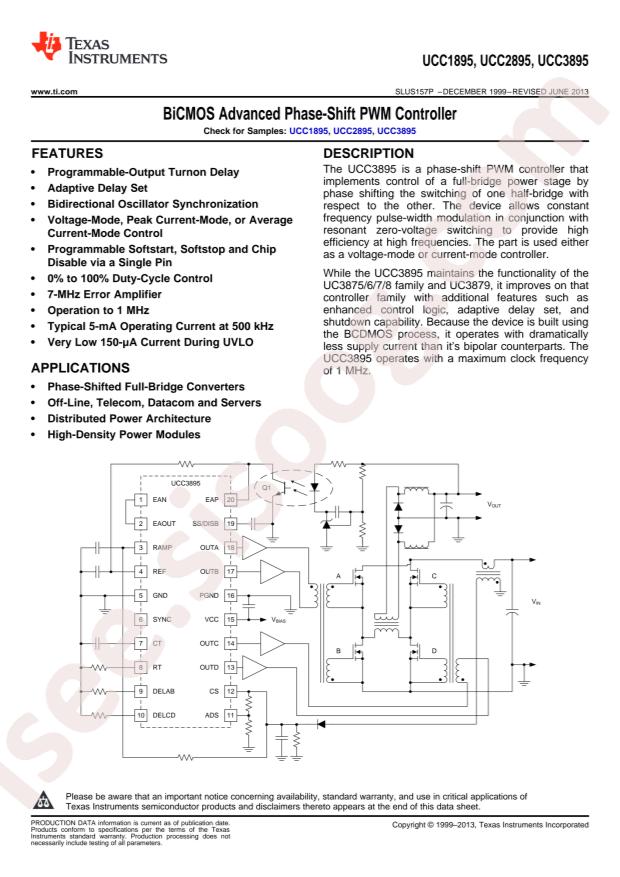

دیتاشیت UCC3895DWTR

UCC1895/2895/3895

مشخصات دیتاشیت

نام دیتاشیت UCC1895/2895/3895
حجم فایل 2900.305 کیلوبایت
نوع فایل pdf
تعداد صفحات 59

دانلود دیتاشیت UCC1895/2895/3895

UCC1895/2895/3895 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Datasheet: Texas Instruments UCC3895DWTR
  • Package: SOP-20-300mil
  • Manufacturer: Texas Instruments
  • Voltage - Supply (Vcc/Vdd): 10V ~ 16.5V
  • Base Part Number: UCC389
  • Voltage - Breakdown: -
  • Voltage - Start Up: 11V
  • Mounting Type: Surface Mount
  • Operating Temperature: 0°C ~ 70°C (TA)
  • Internal Switch(s): No
  • Fault Protection: -
  • Topology: Full-Bridge
  • Frequency - Switching: 1MHz
  • Packaging: Cut Tape (CT)
  • Duty Cycle: 100%
  • Series: -
  • Package / Case: 20-SOIC (0.295", 7.50mm Width)
  • Output Isolation: Isolated
  • Part Status: Active
  • Supplier Device Package: 20-SOIC
  • Control Features: Frequency Control, Soft Start, Sync
  • detail: Converter Offline Full-Bridge Topology 1MHz 20-SOIC
