LM25141RGET دیتاشیت

مشخصات دیتاشیت

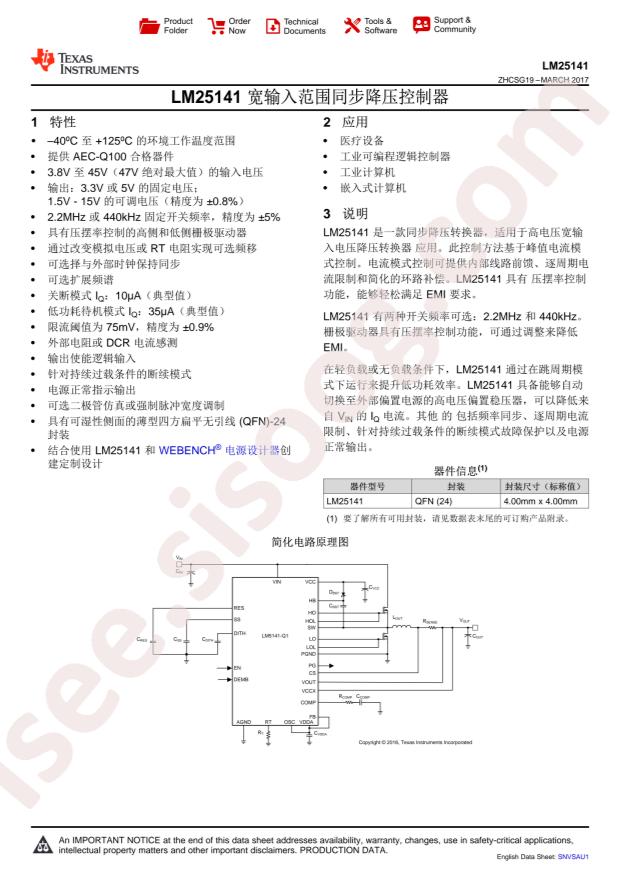

مشاهده دیتاشیت LM25141RGET	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: Step-down type
Topology: Half-Bridge
Datasheet: Texas Instruments LM25141RGET
Input Voltage: 3.8V~42V
Duty Cycle (Max): 50%
Number of Outputs: 1
Switching Frequency: 2.2MHz
Operating Temperature: -40°C~+125°C@(TA)
Synchronous Rectification: Yes
Package: VQFN-24-EP(4x4)
Manufacturer: Texas Instruments
Output Phases: 1
Series: Automotive, AEC-Q101
Output Configuration: Positive
Output Type: Transistor Driver
Clock Sync: Yes
Packaging: Cut Tape (CT)
Synchronous Rectifier: Yes
Voltage - Supply (Vcc/Vdd): 3.8V ~ 42V
Supplier Device Package: 24-VQFN (4x4)
Serial Interfaces: -
Frequency - Switching: 2.2MHz
Mounting Type: Surface Mount
Base Part Number: LM2514
Part Status: Active
Control Features: Current Limit, Enable, Frequency Control
Package / Case: 24-VFQFN Exposed Pad
detail: Half-Bridge Regulator Positive Output Step-Down DC-DC Controller IC 24-VQFN (4x4)
