دیتاشیت DRV8880PWPR

DRV8880

مشخصات دیتاشیت

نام دیتاشیت DRV8880
حجم فایل 2855.467 کیلوبایت
نوع فایل pdf
تعداد صفحات 50

دانلود دیتاشیت DRV8880

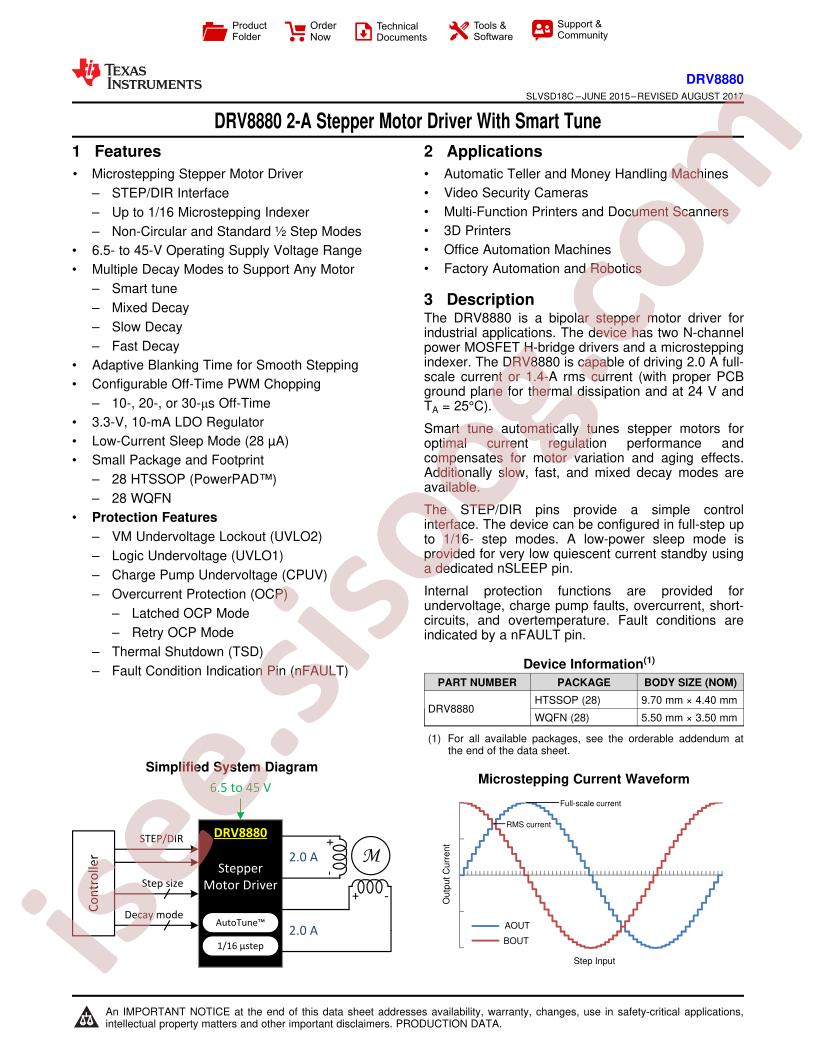

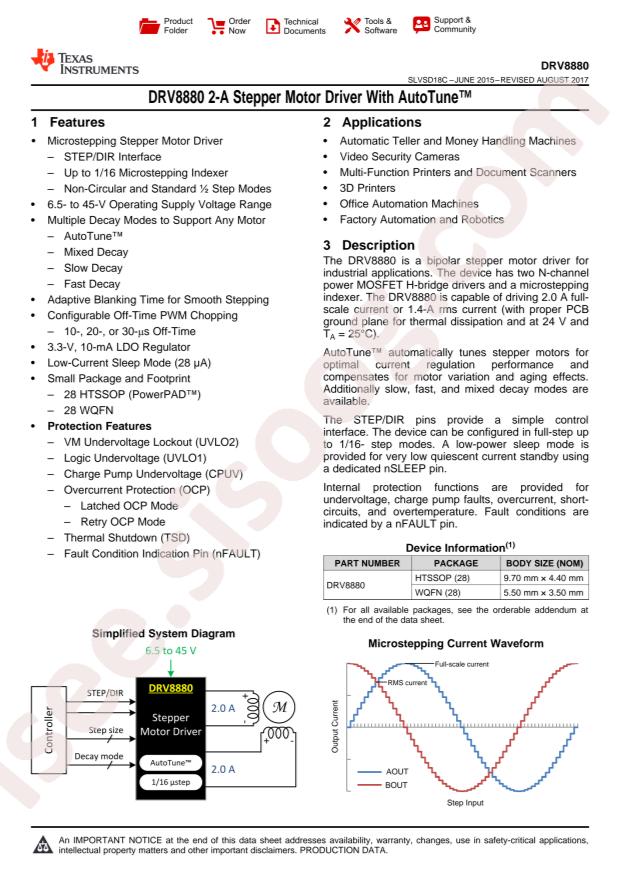

DRV8880 Datasheet

مشخصات

  • RoHS: true
  • Type: -
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8880PWPR
  • Interface: -
  • Output Current: 2A
  • Supply Voltage: 6.5V~45V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: TSSOP-28-EP
  • Manufacturer: Texas Instruments
  • Series: -
  • Technology: Power MOSFET
  • Package / Case: 28-PowerTSSOP (0.173", 4.40mm Width)
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Current - Output: 2A
  • Part Status: Active
  • Base Part Number: DRV8880
  • Mounting Type: Surface Mount
  • Motor Type - Stepper: Bipolar
  • Applications: General Purpose
  • Motor Type - AC, DC: -
  • Voltage - Supply: 6.5V ~ 45V
  • Step Resolution: 1, 1/2, 1/4, 1/8, 1/16
  • Packaging: Tube
  • Output Configuration: Half Bridge (4)
  • Voltage - Load: 6.5V ~ 45V
  • Supplier Device Package: 28-HTSSOP
  • detail: Bipolar Motor Driver Power MOSFET Logic 28-HTSSOP
