TPS54A24RTWR دیتاشیت

مشخصات دیتاشیت

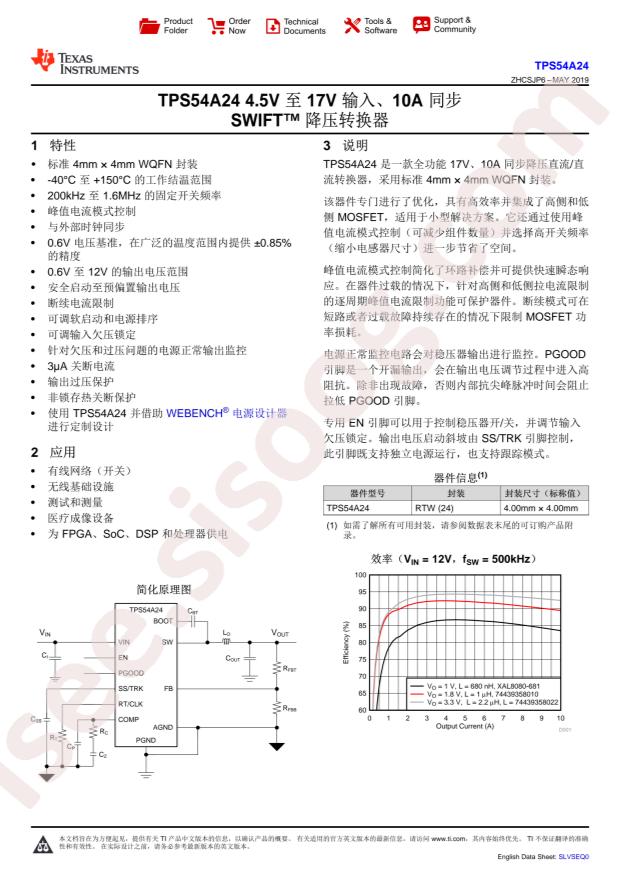

مشاهده دیتاشیت TPS54A24RTWR	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments TPS54A24RTWR
Output Type: Adjustable
Input Voltage: 4.5V~17V
Output Voltage: 0.6V~12V
Number of Outputs: 1
Switching Frequency: 1.6MHz
Output Current (Max): 10A
Operating Temperature: -40°C~+150°C@(TJ)
Synchronous Rectification: Yes

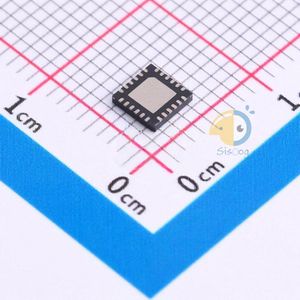

Package: HWQFN-24-EP(4x4)
Manufacturer: Texas Instruments
Supplier Device Package: 24-WQFN (4x4)
Voltage - Input (Min): 4.5V
Voltage - Output (Max): 12V
Output Configuration: Positive
Mounting Type: Surface Mount
Current - Output: 10A
Synchronous Rectifier: Yes
Frequency - Switching: 200kHz ~ 1.6MHz
Packaging: Cut Tape (CT)
Voltage - Output (Min/Fixed): 0.6V
Series: -
Base Part Number: TPS54A
Voltage - Input (Max): 17V
Part Status: Active
Package / Case: 24-WFQFN Exposed Pad
detail: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 10A 24-WFQFN Exposed Pad
