DRV8704DCPR دیتاشیت

DRV8704DCPR

مشخصات دیتاشیت

نام دیتاشیت DRV8704DCPR
حجم فایل 87.314 کیلوبایت
نوع فایل pdf
تعداد صفحات 38

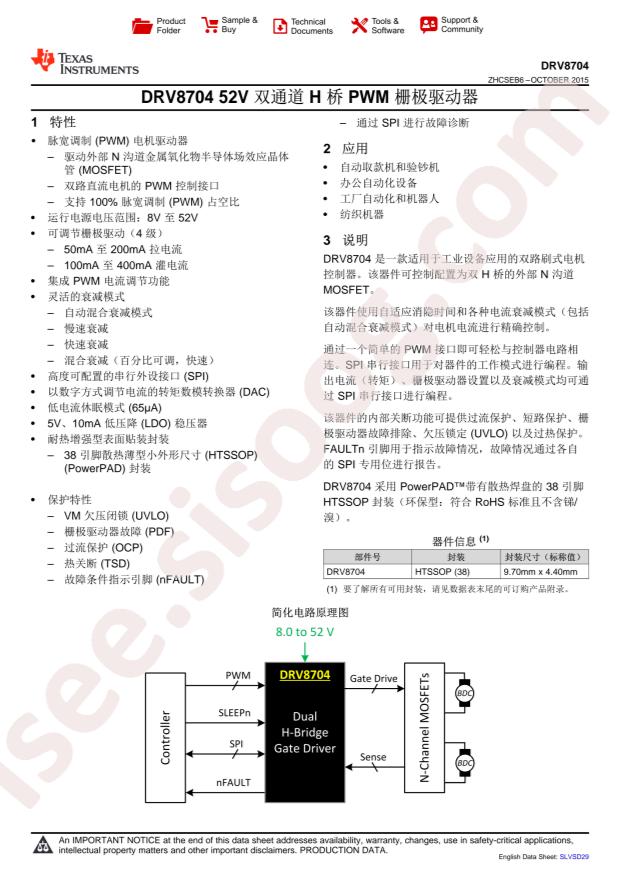

مشاهده دیتاشیت DRV8704DCPR

دانلود دیتاشیت

سایر مستندات

DRV8704 Datasheet 39 pages

مشخصات فنی

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8704DCPR
  • Interface: PWM;SPI,STEP/DIR
  • Output Current: -
  • Supply Voltage: 0V~5.3V
  • Operating Temperature: -40°C~+85°C@(Ta)
  • Package: HTSSOP-38-EP-4.4mm
  • Manufacturer: Texas Instruments
  • Series: -
  • Technology: NMOS
  • Package / Case: 38-TFSOP (0.173", 4.40mm Width) Exposed Pad
  • Function: Controller - Commutation, Direction Management
  • Current - Output: -
  • Part Status: Active
  • Base Part Number: DRV8704
  • Mounting Type: Surface Mount
  • Motor Type - Stepper: -
  • Applications: General Purpose
  • Motor Type - AC, DC: Brushed DC
  • Voltage - Supply: 0V ~ 5.3V
  • Step Resolution: -
  • Packaging: Tube
  • Output Configuration: Pre-Driver - Half Bridge (4)
  • Voltage - Load: 8V ~ 52V
  • Supplier Device Package: 38-HTSSOP
  • detail: Motor Driver NMOS PWM, SPI 38-HTSSOP
