ISO7142CCDBQR دیتاشیت

مشخصات دیتاشیت

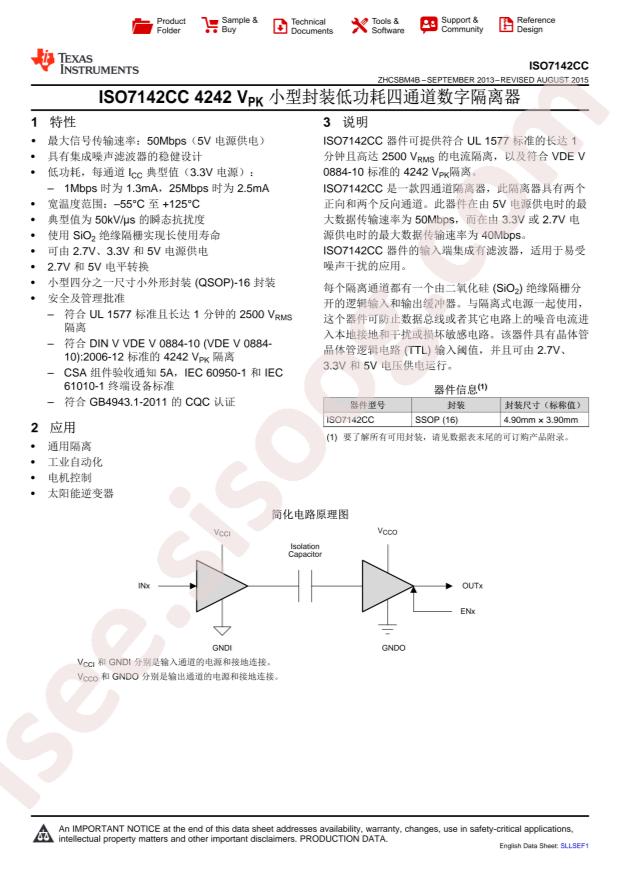

مشاهده دیتاشیت ISO7142CCDBQR	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Digital Isolators
Data Rate: 50Mbps
Datasheet: Texas Instruments ISO7142CCDBQR
Applications: General-purpose
Supply Voltage: 2.7V~5.5V
Forward Channel: 2
Reverse channel: 2
Number of Channels: 4
Isolation Technology: 电容隔离
Operating Temperature: -55°C~+125°C
Voltage Isolation or Not: Without voltage isolation
Package: SSOP-16-150mil-0.635mm
Manufacturer: Texas Instruments
Channel Type: Unidirectional
Pulse Width Distortion (Max): 3.5ns
Type: General Purpose
Isolated Power: No
Series: -
Packaging: Cut Tape (CT)
Voltage - Supply: 2.7V ~ 5.5V
Propagation Delay tpLH / tpHL (Max): 38ns, 38ns
Common Mode Transient Immunity (Min): 25kV/µs
Technology: Capacitive Coupling
Supplier Device Package: 16-SSOP
Base Part Number: ISO7142
Inputs - Side 1/Side 2: 2/2
Voltage - Isolation: 2500Vrms
Mounting Type: Surface Mount
Part Status: Active
Rise / Fall Time (Typ): 2.5ns, 2.1ns
Package / Case: 16-SSOP (0.154", 3.90mm Width)
detail: General Purpose Digital Isolator 2500Vrms 4 Channel 50Mbps 25kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
