- دیتاشیت DRV10983SQPWPRQ1

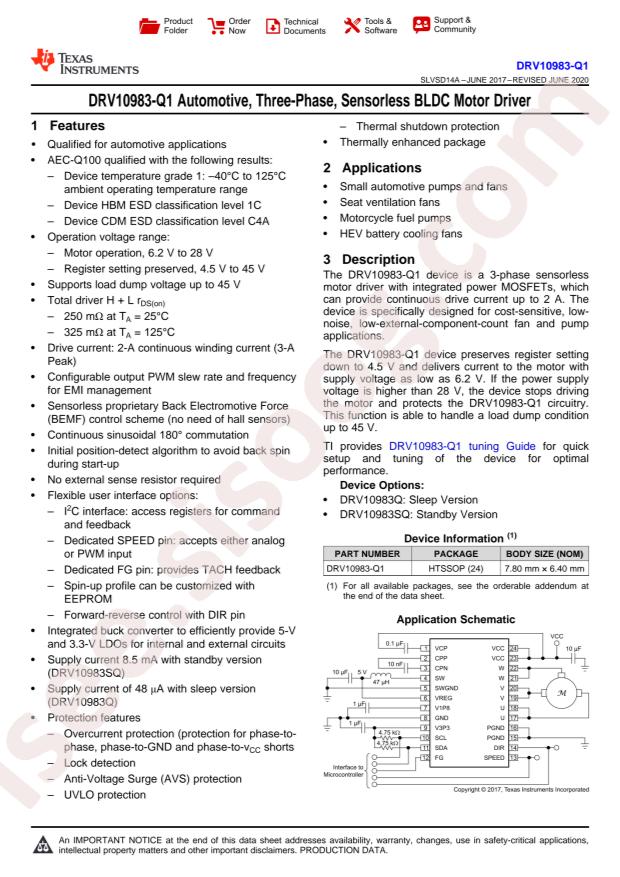

DRV10983SQPWPRQ1 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | DRV10983SQPWPRQ1 |
|---|---|
| حجم فایل | 118.579 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 77 |
دانلود دیتاشیت DRV10983SQPWPRQ1 |
دانلود دیتاشیت |
|---|
سایر مستندات
DRV10983-Q1 Datasheet 77 pages
DRV10983-Q1 Tuning Guide 35 pages
مشخصات فنی
- RoHS: true
- Type: 无刷直流BLDC
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: Texas Instruments DRV10983SQPWPRQ1
- Interface: I2C;PWM
- Output Current: 2A
- Supply Voltage: 6.2V~28V
- Operating Temperature: -40°C~+150°C@(Tj)
- Package: TSSOP-24-EP
- Manufacturer: Texas Instruments
- Motor Type - Stepper: -
- Function: Driver - Fully Integrated, Control and Power Stage
- Supplier Device Package: 24-HTSSOP
- Applications: Automotive
- Step Resolution: -
- Voltage - Load: 6.2V ~ 28V
- Mounting Type: Surface Mount
- Voltage - Supply: 6.2V ~ 28V
- Packaging: Cut Tape (CT)
- Motor Type - AC, DC: Brushless DC (BLDC)
- Output Configuration: Half Bridge (3)
- Series: Automotive, AEC-Q100
- Base Part Number: DRV10983
- Package / Case: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Current - Output: 2A
- Part Status: Active
- Technology: Power MOSFET
- detail: Motor Driver Power MOSFET Analog, I²C, PWM 24-HTSSOP
