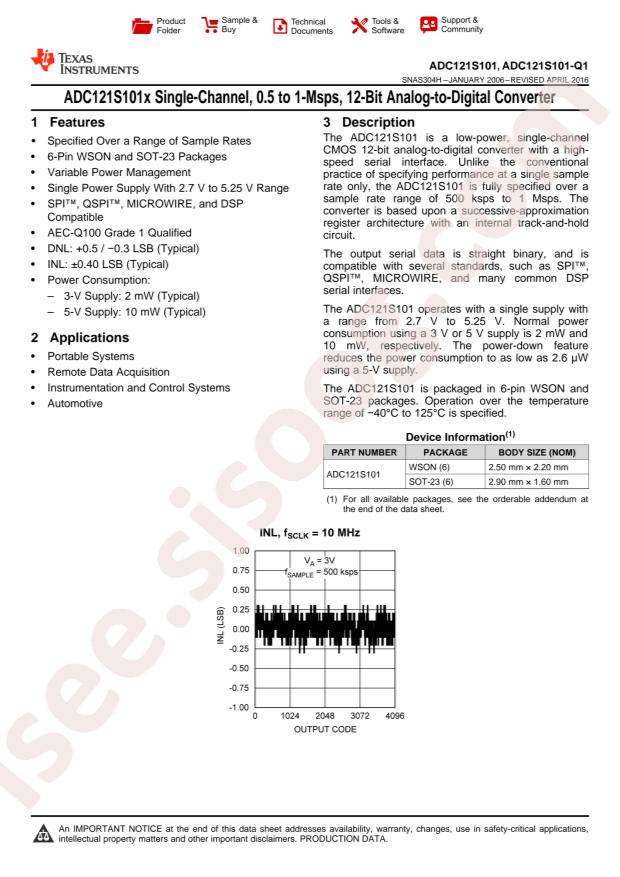

- دیتاشیت ADC121S101CIMFX/NOPB
ADC121S101CIMFX/NOPB دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | ADC121S101CIMFX/NOPB |
|---|---|
| حجم فایل | 88.788 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 31 |
دانلود دیتاشیت ADC121S101CIMFX/NOPB |
دانلود دیتاشیت |
|---|
سایر مستندات
ADC121S101 Datasheet 31 pages
مشخصات فنی
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Texas Instruments ADC121S101CIMFX/NOPB
- Interface: SPI;DSP
- resolution: 12Bit
- Supply Voltage: 2.7V~5.25V
- number of channels: 1
- sampling frequency: 1MHz
- Operating Temperature: -40°C~+125°C
- Package: SOT-23-6
- Manufacturer: Texas Instruments
- Architecture: SAR
- Sampling Rate (Per Second): 1M
- Series: -
- Voltage - Supply, Analog: 2.7V ~ 5.25V
- Input Type: Single Ended
- Number of A/D Converters: 1
- Number of Bits: 12
- Voltage - Supply, Digital: 2.7V ~ 5.25V
- Packaging: Digi-Reel®
- Reference Type: Supply
- Ratio - S/H:ADC: 1:1
- Configuration: S/H-ADC
- Supplier Device Package: SOT-23-6
- Data Interface: SPI, DSP
- Base Part Number: ADC121
- Features: -
- Number of Inputs: 1
- Mounting Type: Surface Mount
- Part Status: Active
- Package / Case: SOT-23-6
- detail: 12 Bit Analog to Digital Converter 1 Input 1 SAR SOT-23-6
