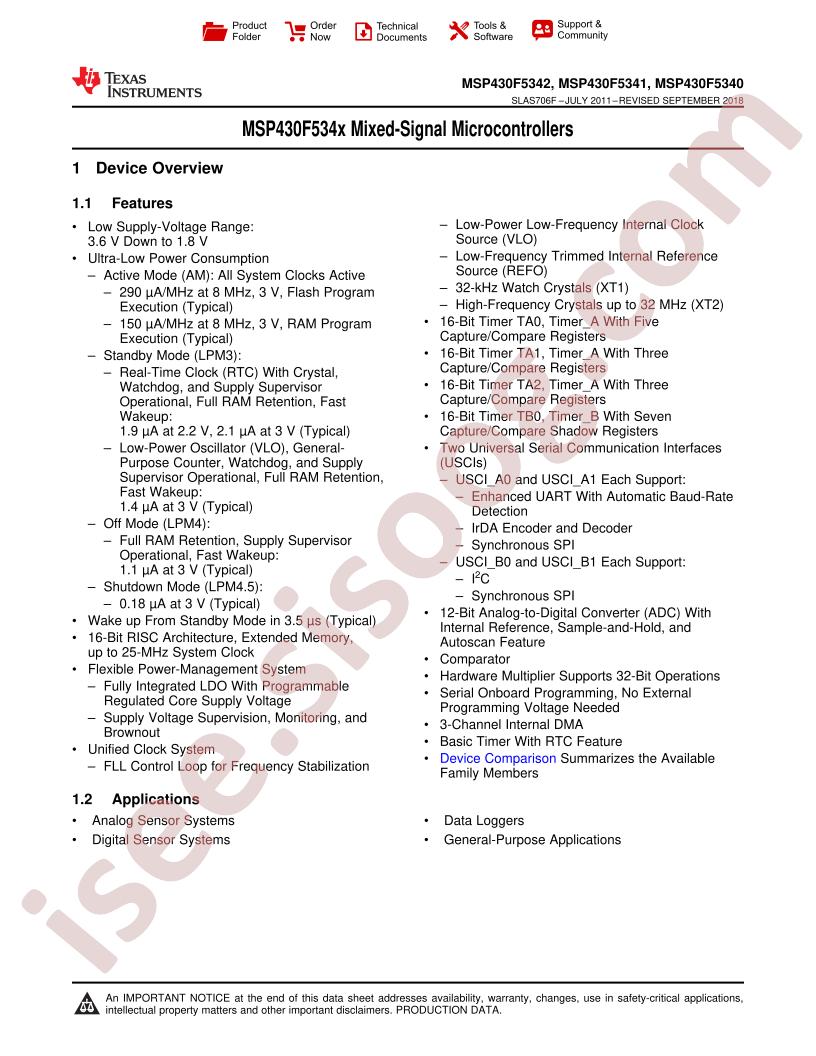

MSP430F534x Datasheet دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت MSP430F534x Datasheet	دانلود دیتاشیت

RoHS: true
CPU Core: MSP430
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
Watchdog: Yes
ADC (Bit): 12bit
Datasheet: Texas Instruments MSP430F5340IRGZR
CPU Maximum Speed: 25MHz
GPIO Ports Number: 38
Low-Voltage Detect: Yes
Internal Oscillator: Yes
Direct Memory Access: Yes
Program Storage Size: 64KB
Operating Voltage Range: 1.8V~3.6V
Infrared Data Association: Yes
Operating Temperature Range: -40°C~+85°C
Package: QFN-48-EP(7x7)
Manufacturer: Texas Instruments
Series: MSP430F5xx
EEPROM Size: -
Oscillator Type: Internal
Mounting Type: Surface Mount
Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
Data Converters: A/D 9x12b
Packaging: Cut Tape (CT)
Core Processor: CPUXV2
Number of I/O: 38
Program Memory Size: 64KB (64K x 8)
Core Size: 16-Bit
Connectivity: I²C, IrDA, SCI, SPI, UART/USART
Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
Supplier Device Package: 48-VQFN (7x7)
Base Part Number: 430F5340
Program Memory Type: FLASH
RAM Size: 6K x 8
Package / Case: 48-VFQFN Exposed Pad
Speed: 25MHz
Part Status: Active
Operating Temperature: -40°C ~ 85°C (TA)
detail: CPUXV2 MSP430F5xx Microcontroller IC 16-Bit 25MHz 64KB (64K x 8) FLASH 48-VQFN (7x7)
