STM32WB55VEY6TR دیتاشیت

مشخصات دیتاشیت

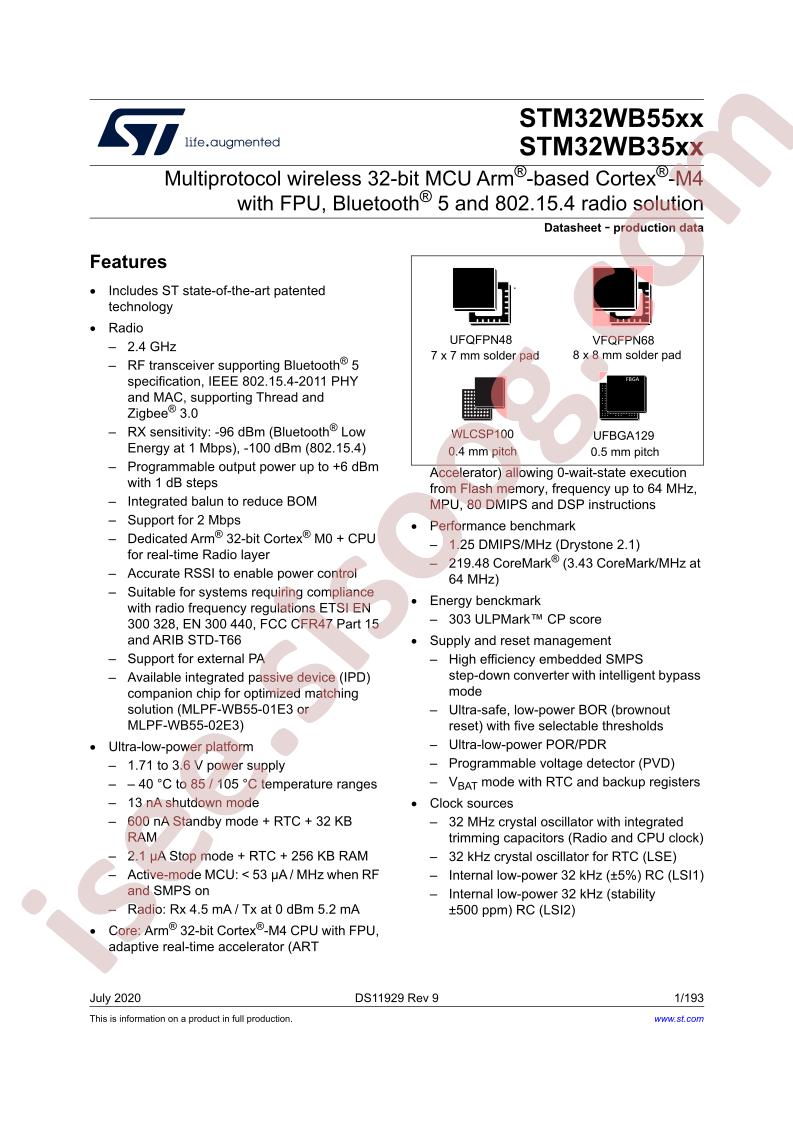

مشاهده دیتاشیت STM32WB55xx	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: STMicroelectronics
Series: -
Part Status: Active
Type: TxRx + MCU
RF Family/Standard: 802.15.4, Bluetooth
Protocol: Bluetooth v5.0, Thread, Zigbee®
Modulation: GFSK
Frequency: 2.402GHz ~ 2.48GHz
Data Rate (Max): 2Mbps
Power - Output: 6dBm
Sensitivity: -100dBm
Memory Size: 512kB Flash, 256kB SRAM
Serial Interfaces: I²C, SPI, UART, USART, USB
GPIO: 72
Voltage - Supply: 1.71V ~ 3.6V
Current - Receiving: 4.5mA ~ 7.9mA
Current - Transmitting: 5.2mA ~ 12.7mA
Operating Temperature: -40°C ~ 105°C (TA)
Mounting Type: Surface Mount
Package / Case: 100-UFBGA, WLCSP
Supplier Device Package: 100-WLCSP (4.4x4.38)
detail: IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® 2.402GHz ~ 2.48GHz 100-UFBGA, WLCSP
