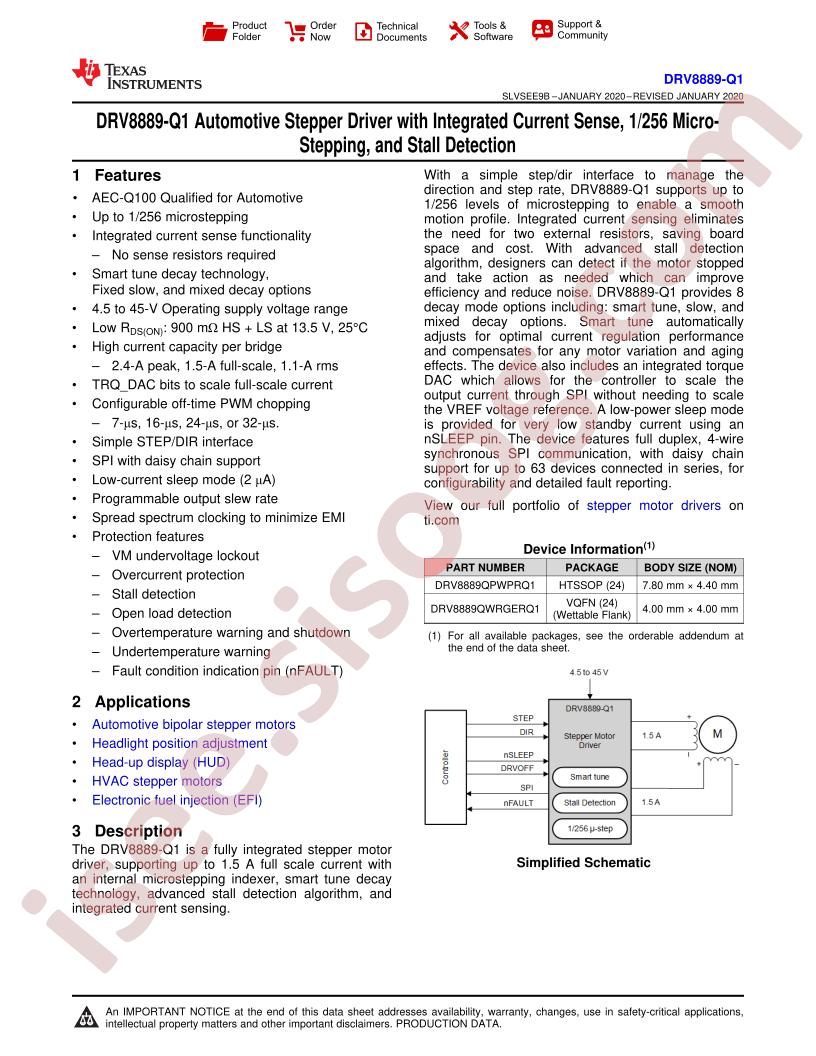

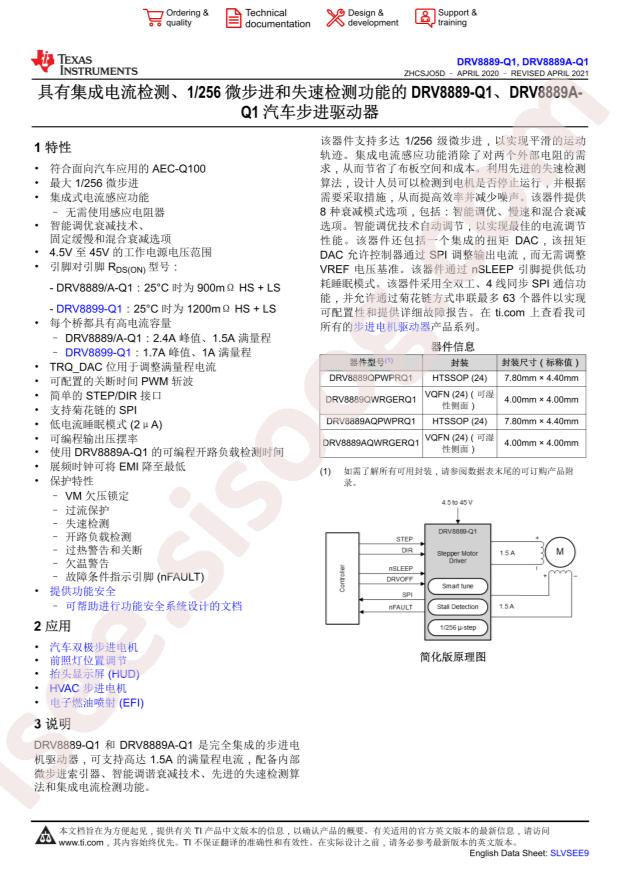

دیتاشیت DRV8889QWRGERQ1
مشخصات دیتاشیت
| نام دیتاشیت |
DRV8889-Q1
|
| حجم فایل |
4381.701
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
84
|
مشخصات
-
RoHS:
true
-
Type:
-
-
Category:
Power Supply Chip/Motor Driver ICs
-
Datasheet:
Texas Instruments DRV8889QWRGERQ1
-
Interface:
SPI,STEP/DIR
-
Output Current:
1.5A
-
Supply Voltage:
0V~5.5V
-
Operating Temperature:
-40°C~+125°C@(Ta)
-

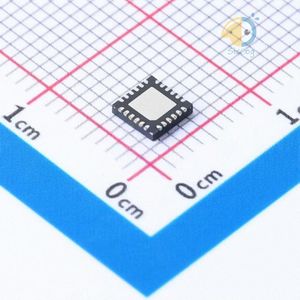

Package:
VQFN-24-EP(4x4)
-
Manufacturer:
Texas Instruments
-
Motor Type - Stepper:
Bipolar
-
Function:
Driver - Fully Integrated, Control and Power Stage
-
Supplier Device Package:
24-VQFN (4x4)
-
Applications:
Automotive
-
Step Resolution:
1 ~ 1/256
-
Voltage - Load:
4.5V ~ 45V
-
Mounting Type:
Surface Mount
-
Voltage - Supply:
0V ~ 5.5V
-
Packaging:
Cut Tape (CT)
-
Motor Type - AC, DC:
-
-
Output Configuration:
Half Bridge (4)
-
Series:
Automotive, AEC-Q100
-
Base Part Number:
DRV888
-
Package / Case:
24-VFQFN Exposed Pad
-
Current - Output:
1.5A
-
Part Status:
Active
-
Technology:
NMOS
-
detail:
Bipolar Motor Driver NMOS SPI, Step/Direction 24-VQFN (4x4)
