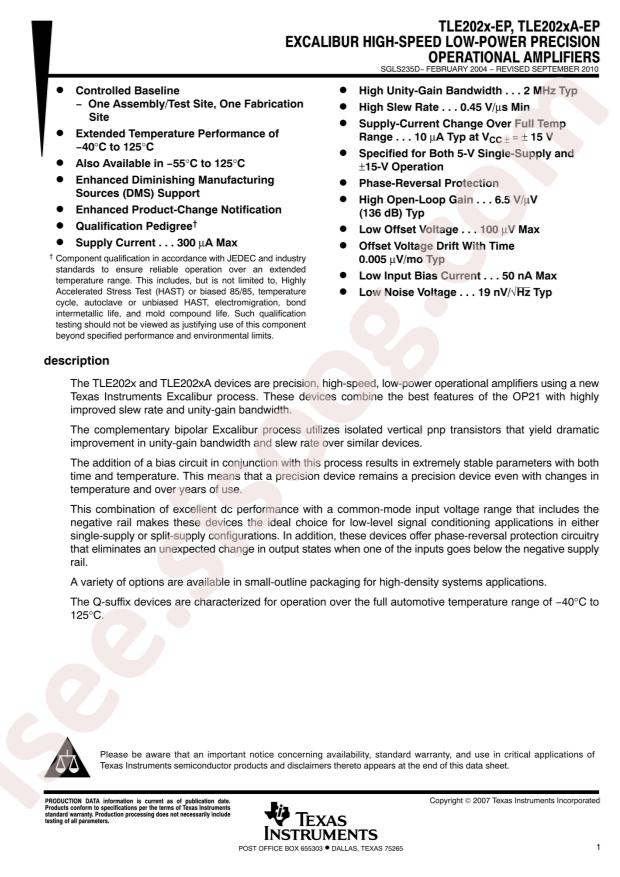

TLE2021MDREP Datasheet

TLE2021MDREP

Datasheet specifications

Datasheet's name TLE2021MDREP
File size 108.893 KB
File type pdf
Number of pages 49

Download Datasheet TLE2021MDREP

Download Datasheet

Other documentations

TLE202x(A,B,Y) Datasheet 80 pages

Technical specifications

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Precision OpAmps
  • Datasheet: Texas Instruments TLE2021MDREP
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Series: Excalibur™
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Number of Circuits: 1
  • Current - Supply: 200µA
  • Voltage - Input Offset: 120µV
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Slew Rate: 0.65V/µs
  • Voltage - Supply, Single/Dual (±): 4V ~ 40V, ±2V ~ 20V
  • Gain Bandwidth Product: 2MHz
  • Operating Temperature: -55°C ~ 125°C
  • Amplifier Type: General Purpose
  • Current - Output / Channel: 20mA
  • Packaging: Tube
  • Base Part Number: TLE202
  • Current - Input Bias: 25nA
  • Output Type: -
  • Supplier Device Package: 8-SOIC
  • detail: General Purpose Amplifier 1 Circuit 8-SOIC
