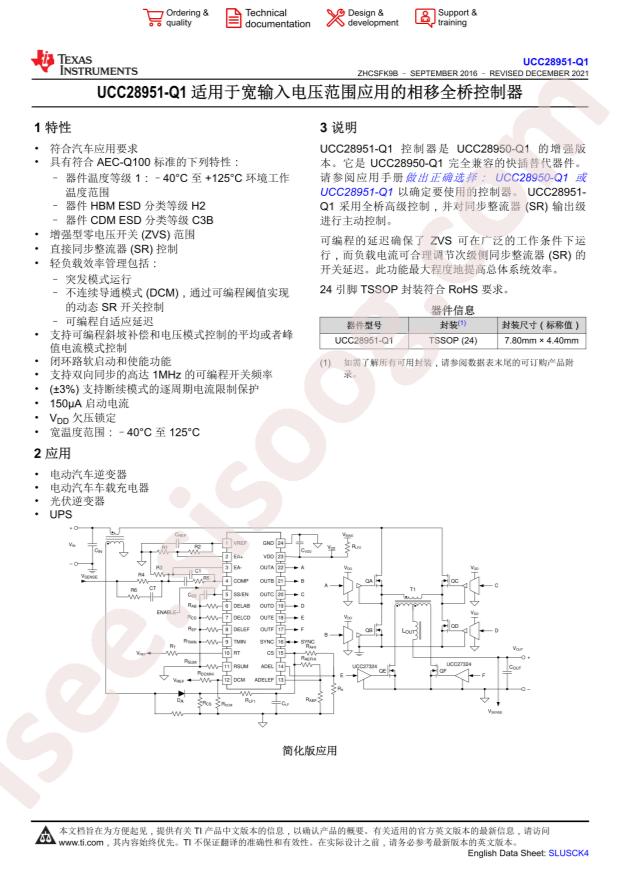

UCC28951QPWRQ1 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | UCC28951QPWRQ1 |
|---|---|
| حجم فایل | 82.931 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 81 |
دانلود دیتاشیت UCC28951QPWRQ1 |
دانلود دیتاشیت |
|---|
سایر مستندات

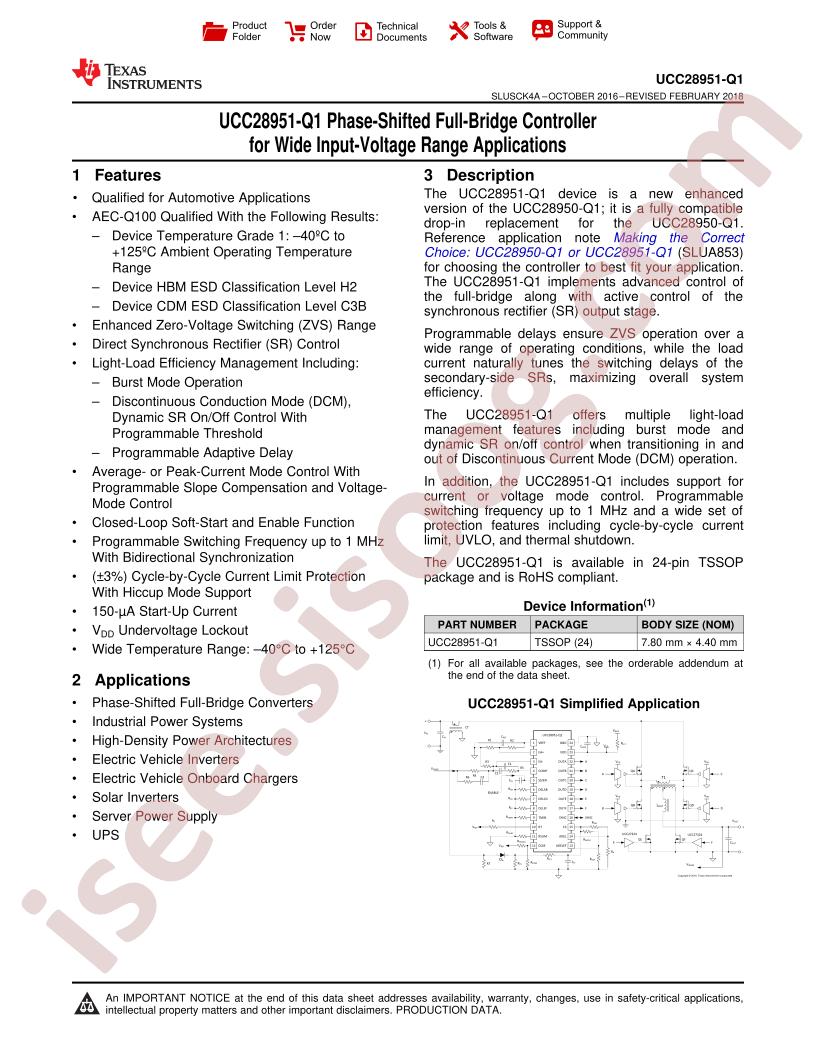

UCC28951-Q1 Datasheet 70 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/AC-DC Controllers & Regulators
- Datasheet: Texas Instruments UCC28951QPWRQ1
- Package: TSSOP-24
- Manufacturer: Texas Instruments
- Output Phases: 1
- Series: Automotive, AEC-Q100
- Output Configuration: Positive
- Output Type: Transistor Driver
- Clock Sync: Yes
- Topology: Full-Bridge
- Packaging: Cut Tape (CT)
- Synchronous Rectifier: Yes
- Voltage - Supply (Vcc/Vdd): 8V ~ 17V
- Function: -
- Supplier Device Package: 24-TSSOP
- Duty Cycle (Max): 95%
- Serial Interfaces: -
- Frequency - Switching: Up to 1MHz
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Base Part Number: UCC289
- Number of Outputs: 6
- Part Status: Active
- Control Features: Enable, Frequency Control, Soft Start
- Package / Case: 24-TSSOP (0.173", 4.40mm Width)
- detail: Full-Bridge Regulator Positive Output DC-DC Controller IC 24-TSSOP
