ISO1176TDWR دیتاشیت

مشخصات دیتاشیت

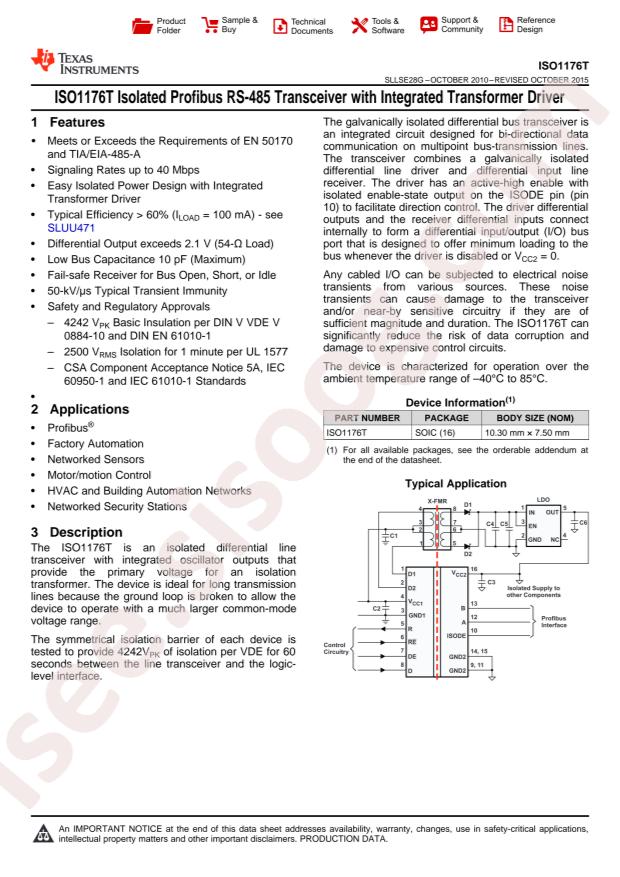

مشاهده دیتاشیت ISO1176TDWR	دانلود دیتاشیت

ISO1176T 37 pages

RoHS: true
Category: Communication Interface Chip/UART/485/232/Digital Isolators
Data Rate: 40Mbps
Datasheet: Texas Instruments ISO1176TDWR
Applications: RS422;RS485
Supply Voltage: 3V~5.5V;4.75V~5.25V
Forward Channel: 2
Reverse channel: 1
Number of Channels: 3
Isolation Technology: 电容隔离
Operating Temperature: -40°C~+85°C
Voltage Isolation or Not: Without voltage isolation
Package: SOP-16-300mil
Manufacturer: Texas Instruments
Channel Type: Unidirectional
Pulse Width Distortion (Max): -
Type: RS422, RS485
Isolated Power: No
Series: -
Packaging: Cut Tape (CT)
Voltage - Supply: 3V ~ 5.5V, 4.75V ~ 5.25V
Propagation Delay tpLH / tpHL (Max): -
Common Mode Transient Immunity (Min): 25kV/µs
Technology: Capacitive Coupling
Supplier Device Package: 16-SOIC
Base Part Number: ISO1176
Inputs - Side 1/Side 2: 2/1
Voltage - Isolation: 2500Vrms
Mounting Type: Surface Mount
Part Status: Active
Rise / Fall Time (Typ): -
Package / Case: 16-SOIC (0.295", 7.50mm Width)
detail: RS422, RS485 Digital Isolator 2500Vrms 3 Channel 40Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
