دیتاشیت LM5036RJBT
مشخصات دیتاشیت
| نام دیتاشیت | LM5036 Datasheet |
|---|---|
| حجم فایل | 3668.947 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 66 |
دانلود دیتاشیت LM5036 Datasheet |

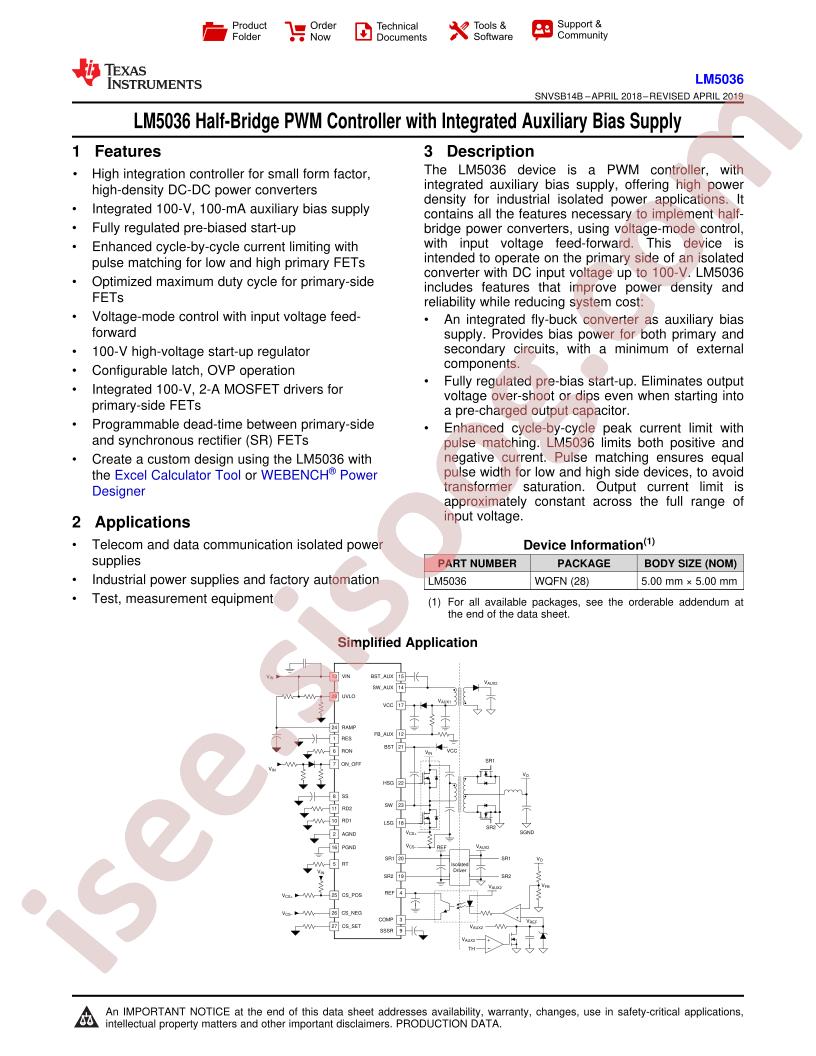

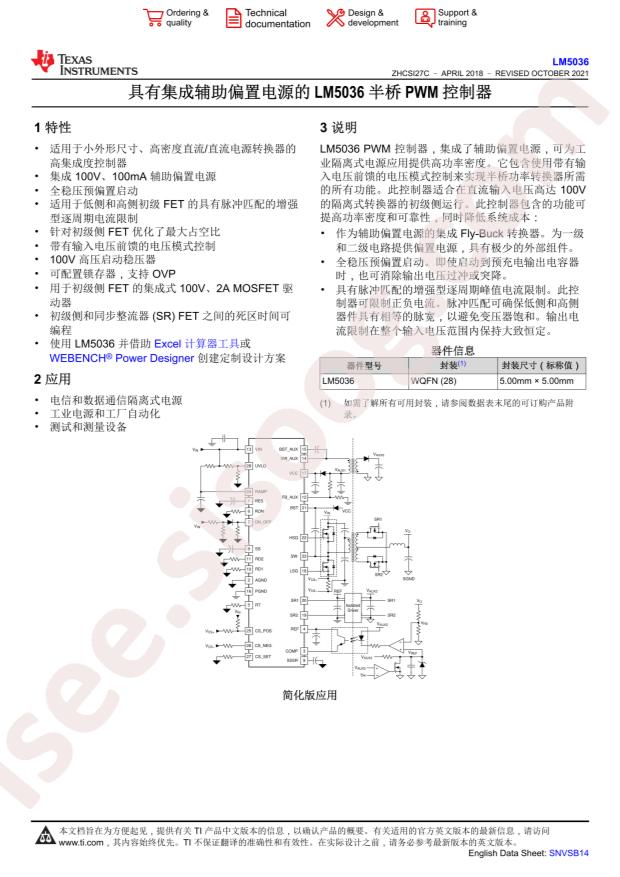

LM5036 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Buck-boost type
- Topology: Half-Bridge
- Datasheet: Texas Instruments LM5036RJBT
- Input Voltage: 7.5V~8.1V
- Duty Cycle (Max): 50%
- Number of Outputs: 2
- Switching Frequency: 2MHz
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: QFN-28-EP(5x5)
- Manufacturer: Texas Instruments
- Output Phases: 2
- Series: -
- Output Configuration: Positive, Isolation Capable
- Output Type: PWM
- Clock Sync: Yes
- Packaging: Cut Tape (CT)
- Synchronous Rectifier: Yes
- Voltage - Supply (Vcc/Vdd): 7.5V ~ 8.1V
- Supplier Device Package: 28-WQFN (5x5)
- Serial Interfaces: -
- Frequency - Switching: 2MHz
- Mounting Type: Surface Mount
- Base Part Number: LM5036
- Part Status: Active
- Control Features: Current Limit, Frequency Control, Ramp
- Package / Case: 28-WFQFN Exposed Pad
- detail: Half-Bridge Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 28-WQFN (5x5)
