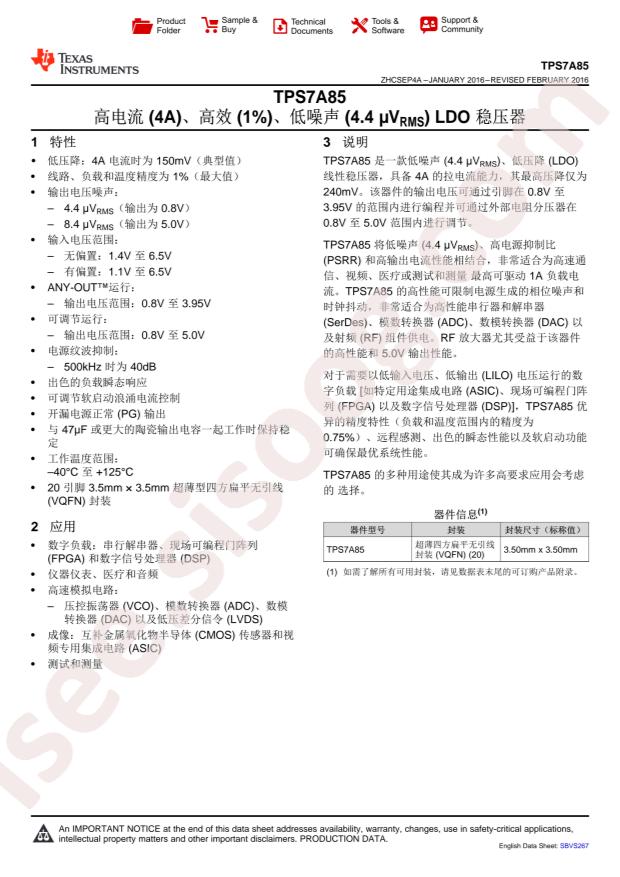

TPS7A8500RGRR Datasheet
Datasheet specifications
| Datasheet's name | TPS7A8500RGRR |
|---|---|
| File size | 89.245 KB |
| File type | |
| Number of pages | 48 |
Download Datasheet TPS7A8500RGRR |
Download Datasheet |
|---|
Other documentations
TPS7A85 Datasheet 48 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TPS7A8500RGRR
- Output Type: -
- Package: QFN-20-EP(3.5x3.5)
- Manufacturer: Texas Instruments
- Series: -
- Voltage - Output (Max): 5V
- Output Configuration: Positive
- Voltage Dropout (Max): 0.5V @ 4A
- Packaging: Tape & Reel (TR)
- Voltage - Output (Min/Fixed): 0.8V
- Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- PSRR: 42dB ~ 25dB (10kHz ~ 500kHz)
- Supplier Device Package: 20-VQFN (3.5x3.5)
- Current - Quiescent (Iq): 4mA
- Base Part Number: TPS7A8
- Mounting Type: Surface Mount
- Operating Temperature: -40°C ~ 125°C (TJ)
- Number of Regulators: 1
- Voltage - Input (Max): 6.5V
- Current - Output: 4A
- Part Status: Active
- Current - Supply (Max): 6mA
- Control Features: Enable, Power Good, Soft Start
- Package / Case: 20-VFQFN Exposed Pad
- detail: Linear Voltage Regulator IC 1 Output 4A 20-VQFN (3.5x3.5)
