CC1101QRHBRG4Q1 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CC1101QRHBRG4Q1
|
|
حجم فایل
|
120.729
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
97
|
مشخصات فنی
-
RoHS:
true
-
Category:
Radio Frequency Chip/Antenna/RF Transceiver ICs
-
Datasheet:

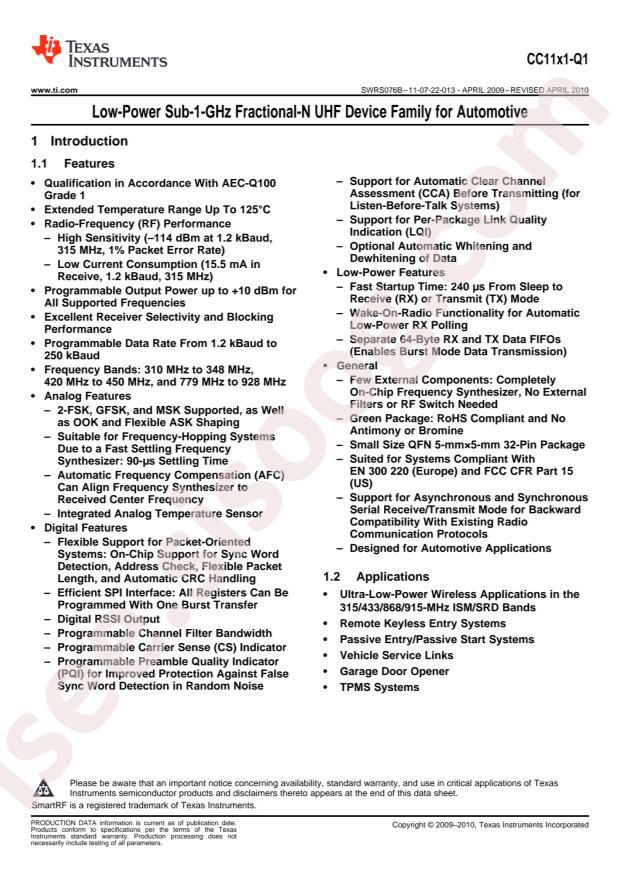

Texas Instruments CC1101QRHBRG4Q1
-
Package:
QFN-32-EP(5x5)
-
Manufacturer:
Texas Instruments
-
Type:
TxRx Only
-
Data Rate (Max):
250kBaud
-
Series:
Automotive, AEC-Q100
-
Protocol:
-
-
Memory Size:
-
-
Sensitivity:
-114dBm
-
Packaging:
Digi-Reel®
-
Voltage - Supply:
1.8V ~ 3.6V
-
Supplier Device Package:
32-VQFN (5x5)
-
Frequency:
310MHz ~ 348MHz, 420MHz ~ 450MHz, 779MHz ~ 928MHz
-
Current - Receiving:
15.5mA ~ 19.3mA
-
Power - Output:
11dBm
-
Modulation:
2FSK, GFSK, ASK, MSK, OOK
-
Current - Transmitting:
12.1mA ~ 35.5mA
-
Base Part Number:
CC1101
-
Serial Interfaces:
SPI
-
Package / Case:
32-VFQFN Exposed Pad
-
Mounting Type:
Surface Mount
-
RF Family/Standard:
General ISM < 1GHz
-
Part Status:
Active
-
Operating Temperature:
-40°C ~ 125°C
-
detail:
IC RF TxRx Only General ISM < 1GHz 310MHz ~ 348MHz, 420MHz ~ 450MHz, 779MHz ~ 928MHz 32-VFQFN Exposed Pad
