TPS75515KTTT دیتاشیت

مشخصات دیتاشیت

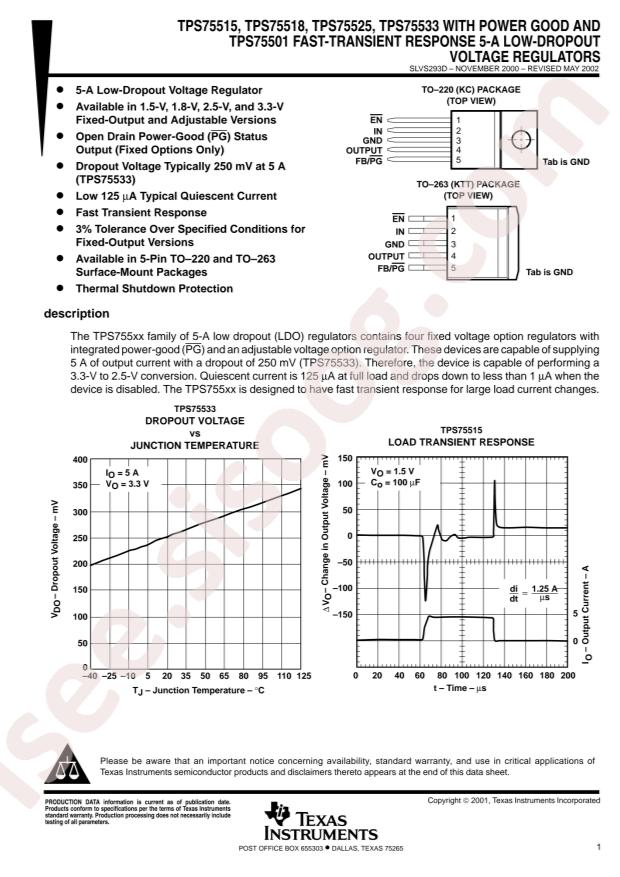

مشاهده دیتاشیت TPS75515KTTT	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)
Datasheet: Texas Instruments TPS75515KTTT
Output Type: Fixed
Output Current: 5A
Dropout Voltage: -
Output Polarity: Positive
Number of Outputs: 1
Maximum Input Voltage: 5.5V
Power Supply Rejection Ratio (PSRR): 60dB@(100Hz)
Package: TO-263-5
Manufacturer: Texas Instruments
Operating Temperature: -40°C ~ 125°C
Base Part Number: TPS755
Supplier Device Package: DDPAK/TO-263-5
Voltage - Output (Max): -
Output Configuration: Positive
Current - Quiescent (Iq): 200µA
PSRR: 60dB (100Hz)
Voltage Dropout (Max): -
Number of Regulators: 1
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)
Voltage - Output (Min/Fixed): 1.5V
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Series: -
Voltage - Input (Max): 5.5V
Current - Output: 5A
Part Status: Obsolete
Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Control Features: Enable, Power Good
detail: Linear Voltage Regulator IC 1 Output 5A DDPAK/TO-263-5
