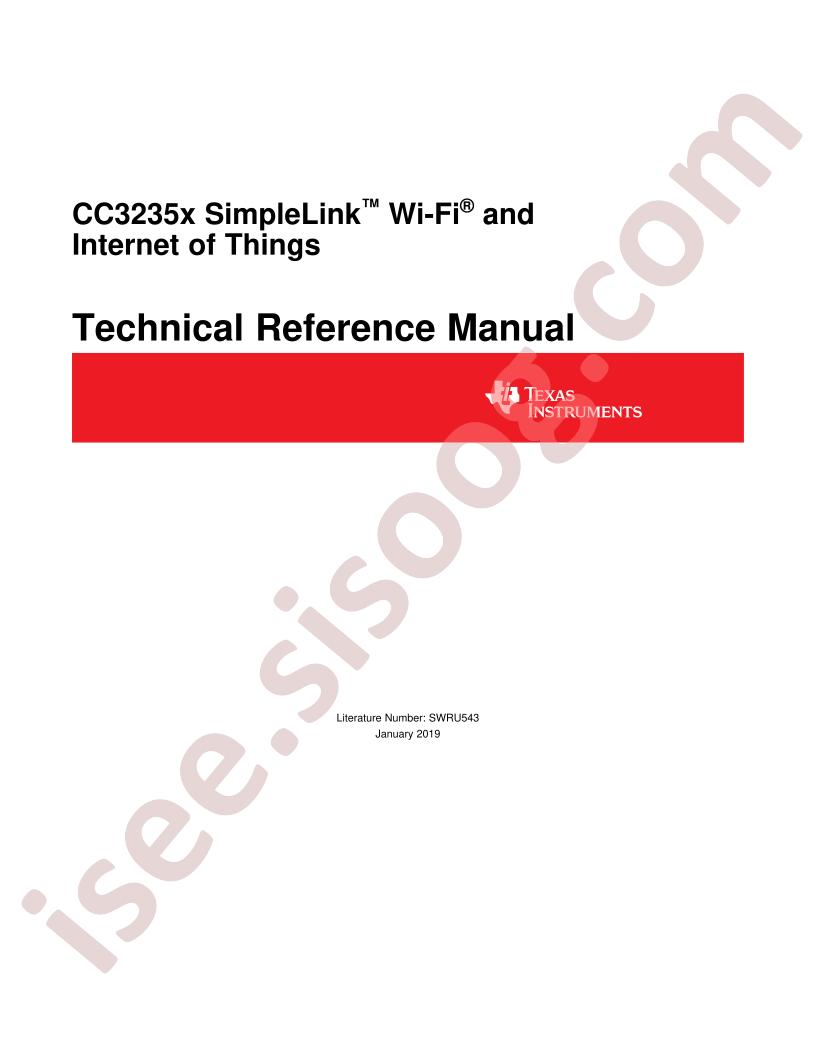

CC3235X Ref Manual دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت CC3235X Ref Manual	دانلود دیتاشیت

RoHS: true
Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
Datasheet: Texas Instruments CC3235SM2RGKR
Package: QFN-64-EP(9x9)
Manufacturer: Texas Instruments
Type: TxRx + MCU
Data Rate (Max): 54Mbps
Series: SimpleLink™
Protocol: 802.11a/b/g/n
Memory Size: 1MB Flash, 256kB RAM
GPIO: 21
Sensitivity: -96dBm
Packaging: Cut Tape (CT)
Voltage - Supply: 2.1V ~ 3.6V
Frequency: 2.412GHz ~ 2.472GHz, 5.18GHz ~ 5.825GHz
Current - Receiving: 59mA
Power - Output: 18.3dBm
Modulation: CCK, DSSS, OFDM
Current - Transmitting: 272mA
Base Part Number: CC3235
Serial Interfaces: ADC, I²C, I²S, PWM, JTAG, SPI, UART
Package / Case: 64-VFQFN Exposed Pad
Mounting Type: Surface Mount
RF Family/Standard: WiFi
Part Status: Active
Operating Temperature: -40°C ~ 85°C (TA)
detail: IC RF TxRx + MCU WiFi 802.11a/b/g/n 2.412GHz ~ 2.472GHz, 5.18GHz ~ 5.825GHz 64-VFQFN Exposed Pad
