دیتاشیت ADS1234IPWR
مشخصات دیتاشیت
| نام دیتاشیت | ADS1232, ADS1234 Datasheet |
|---|---|
| حجم فایل | 1252.518 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 39 |

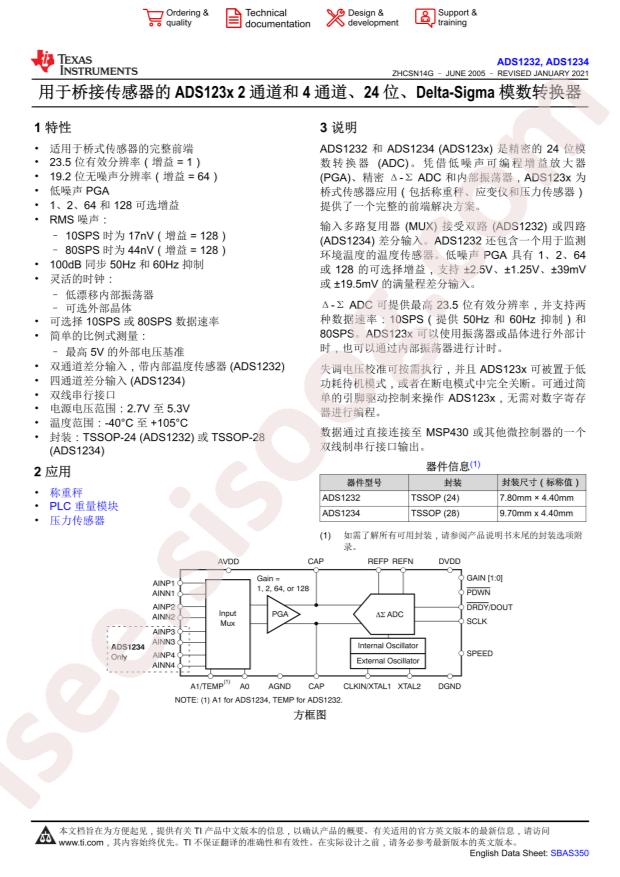

دانلود دیتاشیت ADS1232, ADS1234 Datasheet |
ADS1232, ADS1234 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Texas Instruments ADS1234IPWR
- Interface: SPI
- resolution: 24Bit
- Supply Voltage: 2.7V~5.3V
- differential input: Yes
- number of channels: 4
- sampling frequency: 80Hz
- Operating Temperature: -40°C~+105°C
- Package: TSSOP-28
- Manufacturer: Texas Instruments
- Architecture: Sigma-Delta
- Sampling Rate (Per Second): 80
- Series: -
- Voltage - Supply, Analog: 2.7V ~ 5.3V
- Input Type: Differential, Single Ended
- Number of A/D Converters: 1
- Number of Bits: 24
- Voltage - Supply, Digital: 2.7V ~ 5.3V
- Packaging: Cut Tape (CT)
- Reference Type: External
- Ratio - S/H:ADC: -
- Configuration: MUX-PGA-ADC
- Supplier Device Package: 28-TSSOP
- Data Interface: SPI
- Base Part Number: ADS1234
- Features: PGA
- Number of Inputs: 4
- Mounting Type: Surface Mount
- Part Status: Active
- Package / Case: 28-TSSOP (0.173", 4.40mm Width)
- detail: 24 Bit Analog to Digital Converter 4 Input 1 Sigma-Delta 28-TSSOP
