TPS53632GRSMT دیتاشیت

مشخصات دیتاشیت

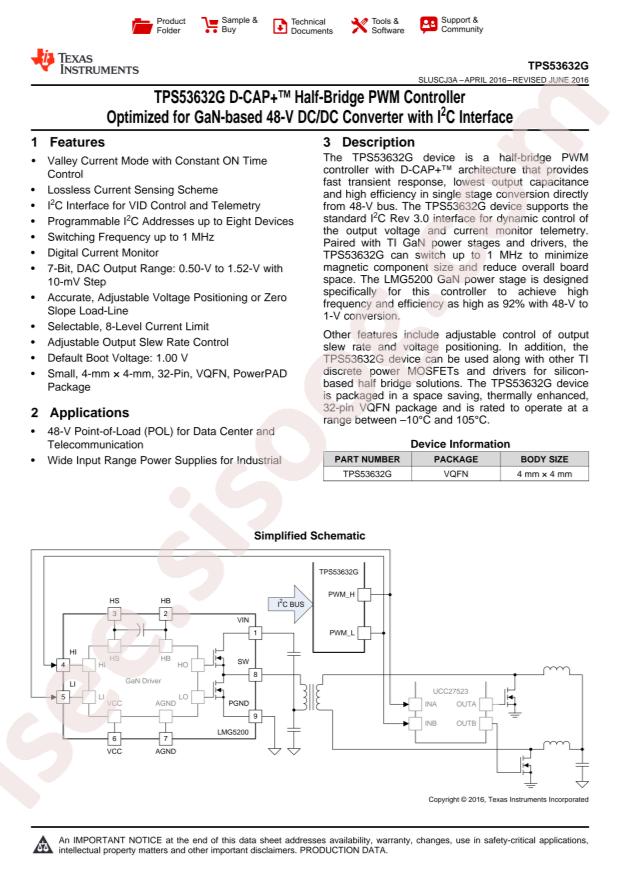

مشاهده دیتاشیت TPS53632GRSMT	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Datasheet: Texas Instruments TPS53632GRSMT
Package: QFN-32-EP(4x4)
Manufacturer: Texas Instruments
Output Phases: 2
Series: D-CAP+™
Output Configuration: Positive
Output Type: PWM Signal
Clock Sync: No
Topology: Half-Bridge
Packaging: Cut Tape (CT)
Synchronous Rectifier: Yes
Voltage - Supply (Vcc/Vdd): 3.1V ~ 28V
Function: Step-Up/Step-Down
Supplier Device Package: 32-VQFN (4x4)
Duty Cycle (Max): -
Serial Interfaces: I²C
Frequency - Switching: 100kHz ~ 1MHz
Operating Temperature: -10°C ~ 105°C (TA)
Mounting Type: Surface Mount
Base Part Number: TPS536
Number of Outputs: 2
Part Status: Active
Control Features: Enable, Frequency Control, Power Good, Pulse Skipping, Ramp, Slew Control
Package / Case: 32-VFQFN Exposed Pad
detail: Half-Bridge Regulator Positive Output Step-Up/Step-Down I²C DC-DC Controller IC 32-VQFN (4x4)
