ISO7830DWWR دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت ISO7830DWWR	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Digital Isolators

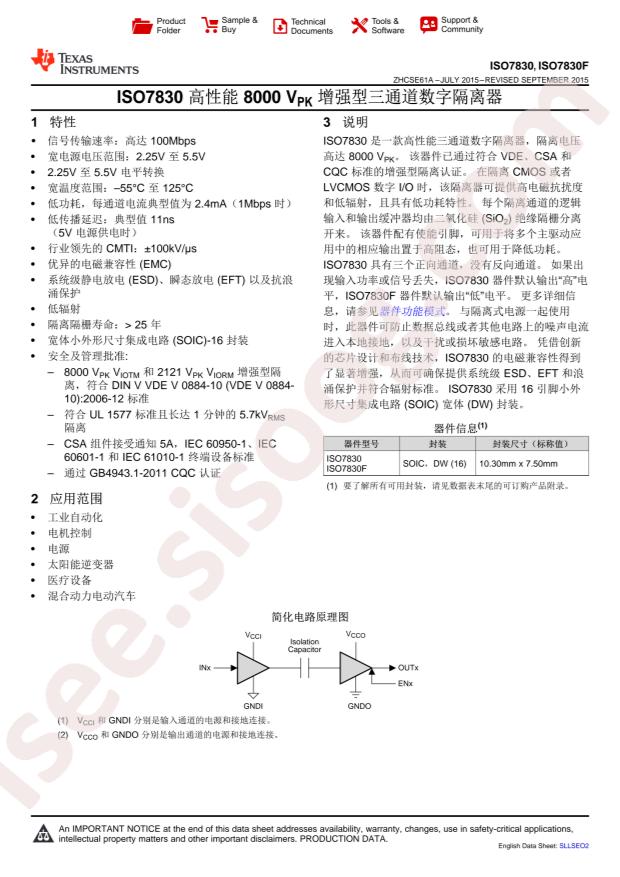

Datasheet: Texas Instruments ISO7830DWWR
Package: SOIC-16-10.3mm
Manufacturer: Texas Instruments
Channel Type: Unidirectional
Pulse Width Distortion (Max): 4.1ns
Type: General Purpose
Number of Channels: 3
Isolated Power: No
Series: -
Packaging: Cut Tape (CT)
Voltage - Supply: 2.25V ~ 5.5V
Propagation Delay tpLH / tpHL (Max): 16ns, 16ns
Common Mode Transient Immunity (Min): 100kV/µs
Data Rate: 100Mbps
Technology: Capacitive Coupling
Supplier Device Package: 16-SOIC
Base Part Number: ISO783
Inputs - Side 1/Side 2: 3/0
Voltage - Isolation: 5700Vrms
Operating Temperature: -55°C ~ 125°C
Mounting Type: Surface Mount
Part Status: Active
Rise / Fall Time (Typ): 1.7ns, 1.9ns
Package / Case: 16-SOIC (0.551", 14.00mm Width)
detail: General Purpose Digital Isolator 5700Vrms 3 Channel 100Mbps 100kV/µs CMTI 16-SOIC (0.551", 14.00mm Width)
