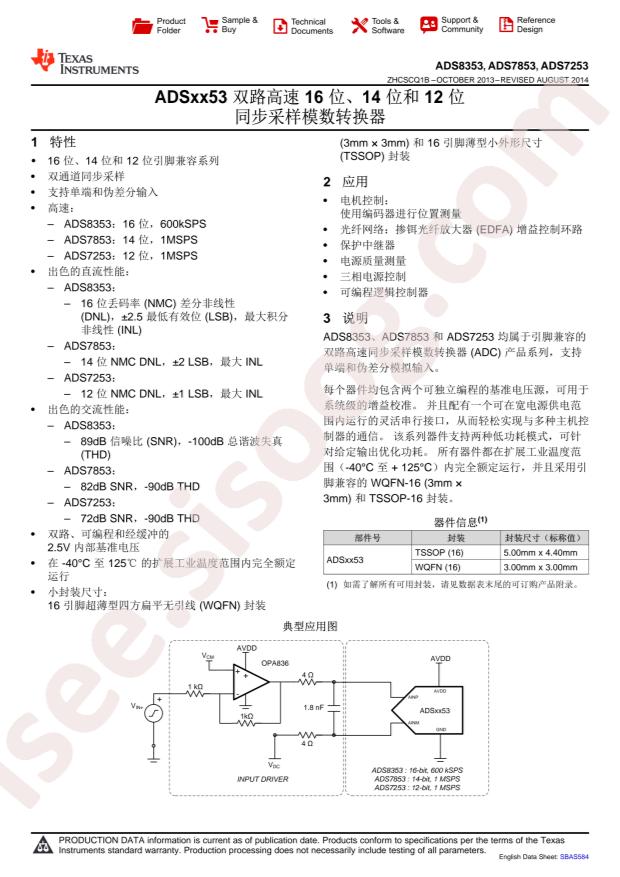

ADS7253IPWR دیتاشیت

ADS7253IPWR

مشخصات دیتاشیت

نام دیتاشیت ADS7253IPWR
حجم فایل 86.99 کیلوبایت
نوع فایل pdf
تعداد صفحات 74

دانلود دیتاشیت ADS7253IPWR

دانلود دیتاشیت

سایر مستندات

Analog Signal Chain Guide 11 pages

ADS7253, 7853, 8353 Datasheet 72 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS7253IPWR
  • Interface: SPI
  • resolution: 12Bit
  • Supply Voltage: 5V
  • number of channels: 2
  • sampling frequency: 1MHz
  • Operating Temperature: -40°C~+125°C
  • Package: TSSOP-16
  • Manufacturer: Texas Instruments
  • Architecture: SAR
  • Sampling Rate (Per Second): 1M
  • Series: -
  • Voltage - Supply, Analog: 5V
  • Input Type: Pseudo-Differential, Single Ended
  • Number of A/D Converters: 2
  • Number of Bits: 12
  • Voltage - Supply, Digital: 1.65V ~ 5.5V
  • Packaging: Cut Tape (CT)
  • Reference Type: External, Internal
  • Ratio - S/H:ADC: 1:1
  • Configuration: S/H-ADC
  • Supplier Device Package: 16-TSSOP
  • Data Interface: SPI
  • Base Part Number: ADS7253
  • Features: Simultaneous Sampling
  • Number of Inputs: 2
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • detail: 12 Bit Analog to Digital Converter 2 Input 2 SAR 16-TSSOP
