ISO7821LLDWR دیتاشیت

مشخصات دیتاشیت

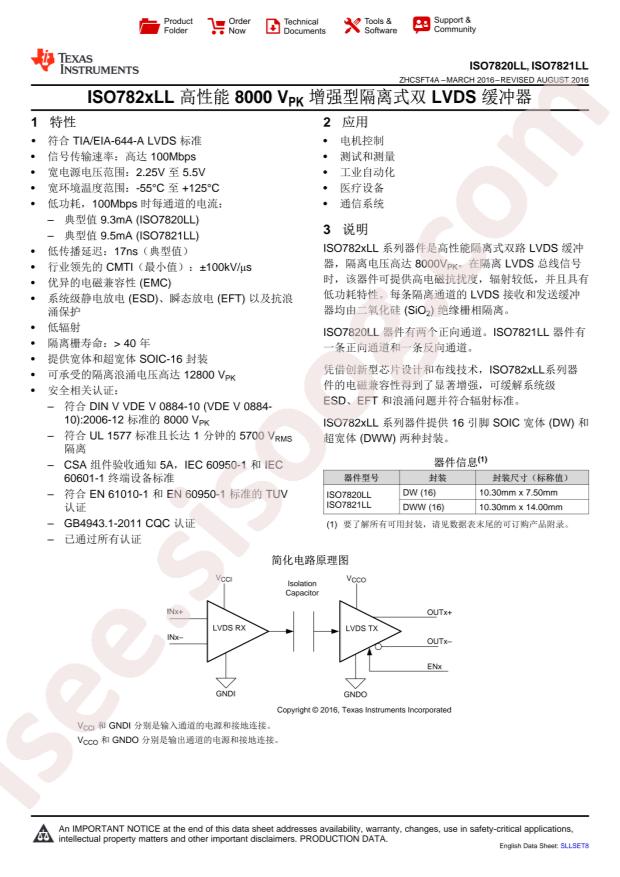

مشاهده دیتاشیت ISO7821LLDWR	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/LVDS ICs
Datasheet: Texas Instruments ISO7820LLDWR
Package: SOIC-16-300mil
Manufacturer: Texas Instruments
Channel Type: Unidirectional
Pulse Width Distortion (Max): 4.5ns
Type: General Purpose
Number of Channels: 2
Isolated Power: No
Series: -
Packaging: Cut Tape (CT)
Voltage - Supply: 2.25V ~ 5.5V
Propagation Delay tpLH / tpHL (Max): 25ns, 25ns
Common Mode Transient Immunity (Min): 100kV/µs
Data Rate: 100Mbps
Technology: Capacitive Coupling
Supplier Device Package: 16-SOIC
Base Part Number: ISO782
Inputs - Side 1/Side 2: 2/0
Voltage - Isolation: 5700Vrms
Operating Temperature: -55°C ~ 125°C
Mounting Type: Surface Mount
Part Status: Active
Rise / Fall Time (Typ): -
Package / Case: 16-SOIC (0.295", 7.50mm Width)
detail: General Purpose Digital Isolator 5700Vrms 2 Channel 100Mbps 100kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
