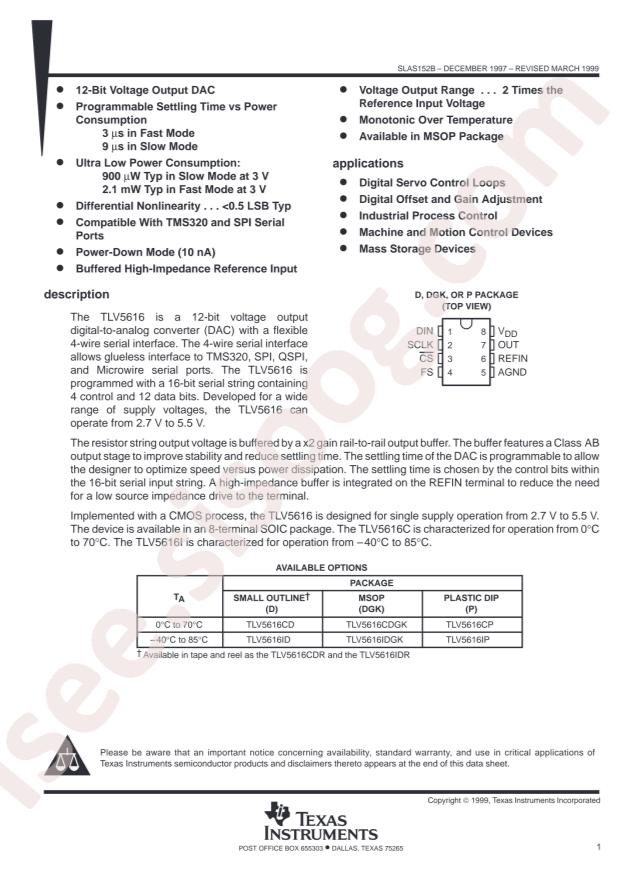

TLV5616CDR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TLV5616CDR |
|---|---|
| حجم فایل | 90.593 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |
دانلود دیتاشیت TLV5616CDR |
دانلود دیتاشیت |
|---|
سایر مستندات
TLV5616C, TLV5616I 30 pages
مشخصات فنی
- RoHS: true
- Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
- Datasheet: Texas Instruments TLV5616CDR
- Interface: SPI
- Resolution: 12Bit
- Output Type: Voltage-缓冲
- Settling Time: 20us
- Supply Voltage: 2.7V~3.3V;5V
- Integral nonlinearity: ±1.9LSB;±0.5LSB
- Operating Temperature: 0°C~+70°C
- Package: SOP-8
- Manufacturer: Texas Instruments
- Voltage - Supply, Analog: 2.7V ~ 3.3V, 5V
- Supplier Device Package: 8-SOIC
- Data Interface: SPI
- Number of D/A Converters: 1
- Mounting Type: Surface Mount
- Number of Bits: 12
- Architecture: String DAC
- Voltage - Supply, Digital: 2.7V ~ 3.3V, 5V
- Packaging: Cut Tape (CT)
- Differential Output: No
- Reference Type: External
- Series: -
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- INL/DNL (LSB): ±1.9, ±0.5
- Base Part Number: TLV561
- Part Status: Active
- detail: 12 Bit Digital to Analog Converter 1 8-SOIC
