دیتاشیت DS15BR401TSQ/NOPB

DS15BR400/01

مشخصات دیتاشیت

نام دیتاشیت DS15BR400/01
حجم فایل 1082.042 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

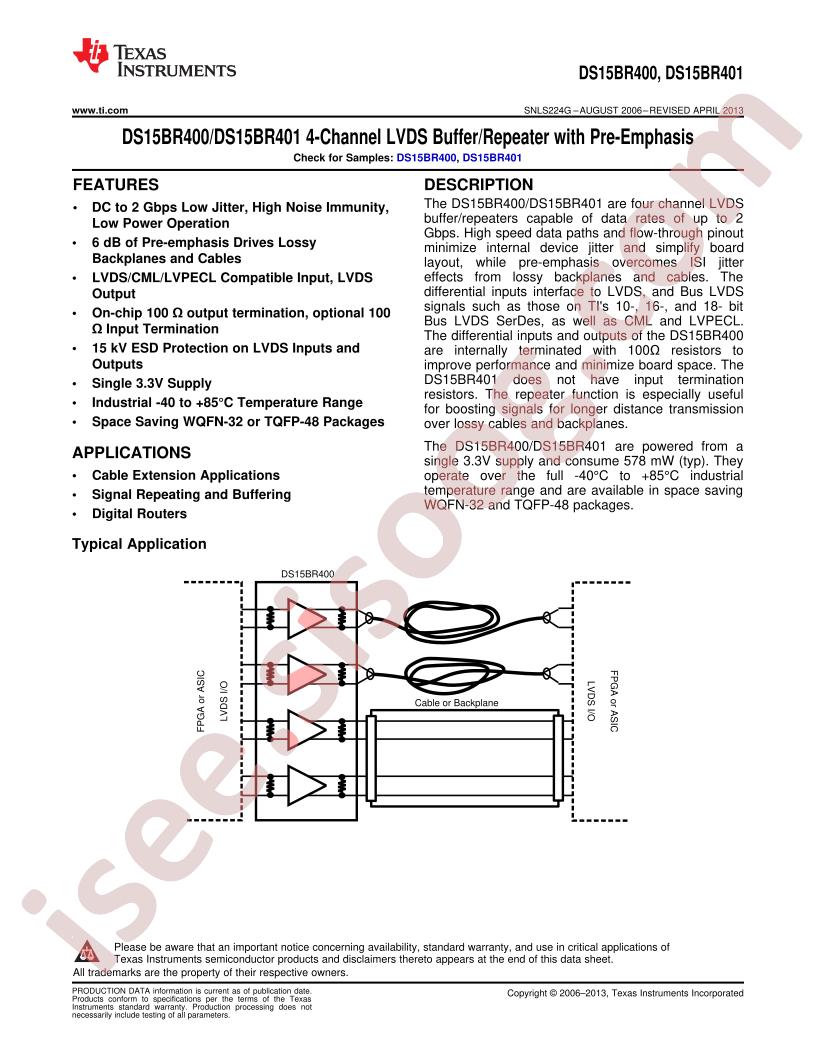

دانلود دیتاشیت DS15BR400/01

DS15BR400/01 Datasheet

مشخصات

  • RoHS: true
  • Type: Buffers;Driver
  • Category: Communication Interface Chip/UART/485/232/LVDS ICs
  • Protocol: FPD-Link;LVDS
  • Data Rate: 2Gbps
  • Datasheet: Texas Instruments DS15BR401TSQ/NOPB
  • Supply Voltage: 3V~3.6V

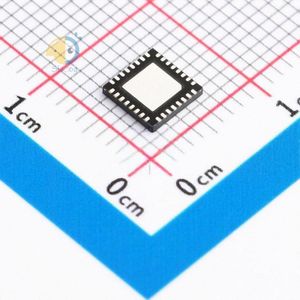

  • Package: WQFN-32(5x5)
  • Manufacturer: Texas Instruments
  • Signal Conditioning: Output Pre-Emphasis
  • Operating Temperature: -40°C ~ 85°C
  • Delay Time: 1.0ns
  • Base Part Number: DS15BR401
  • Number of Channels: 4
  • Package / Case: 32-WFQFN Exposed Pad
  • Current - Supply: 175mA
  • Capacitance - Input: 3pF
  • Supplier Device Package: 32-WQFN (5x5)
  • Voltage - Supply: 3V ~ 3.6V
  • Part Status: Obsolete
  • Series: -
  • Output: LVDS
  • Mounting Type: Surface Mount
  • Data Rate (Max): 2Gbps
  • Packaging: Cut Tape (CT)
  • Input: CML, LVDS, LVPECL
  • Applications: LVDS
  • detail: Buffer, ReDriver 4 Channel 2Gbps 32-WQFN (5x5)
