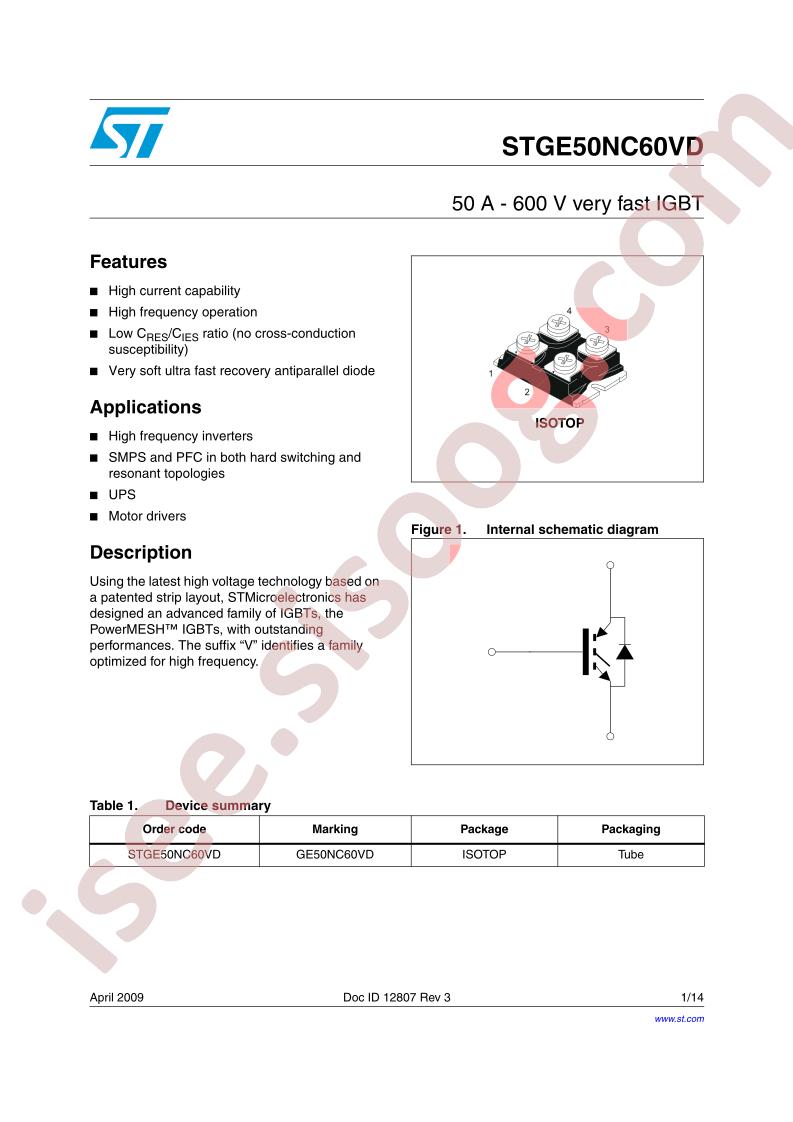

STGE50NC60VD دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STGE50NC60VD
|
|
حجم فایل
|
550.028
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
PowerMESH™
-
Packaging:
Tube
-
Part Status:
Obsolete
-
IGBT Type:
-
-
Configuration:
Single
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
90A
-
Power - Max:
260W
-
Vce(on) (Max) @ Vge, Ic:
2.5V @ 15V, 40A
-
Current - Collector Cutoff (Max):
150µA
-
Input Capacitance (Cies) @ Vce:
4.55nF @ 25V
-
Input:
Standard
-
NTC Thermistor:
No
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Chassis Mount
-
Package / Case:
SOT-227-4, miniBLOC
-
Supplier Device Package:
ISOTOP
-
Base Part Number:
STGE50
-
detail:
IGBT Module Single 600V 90A 260W Chassis Mount ISOTOP
