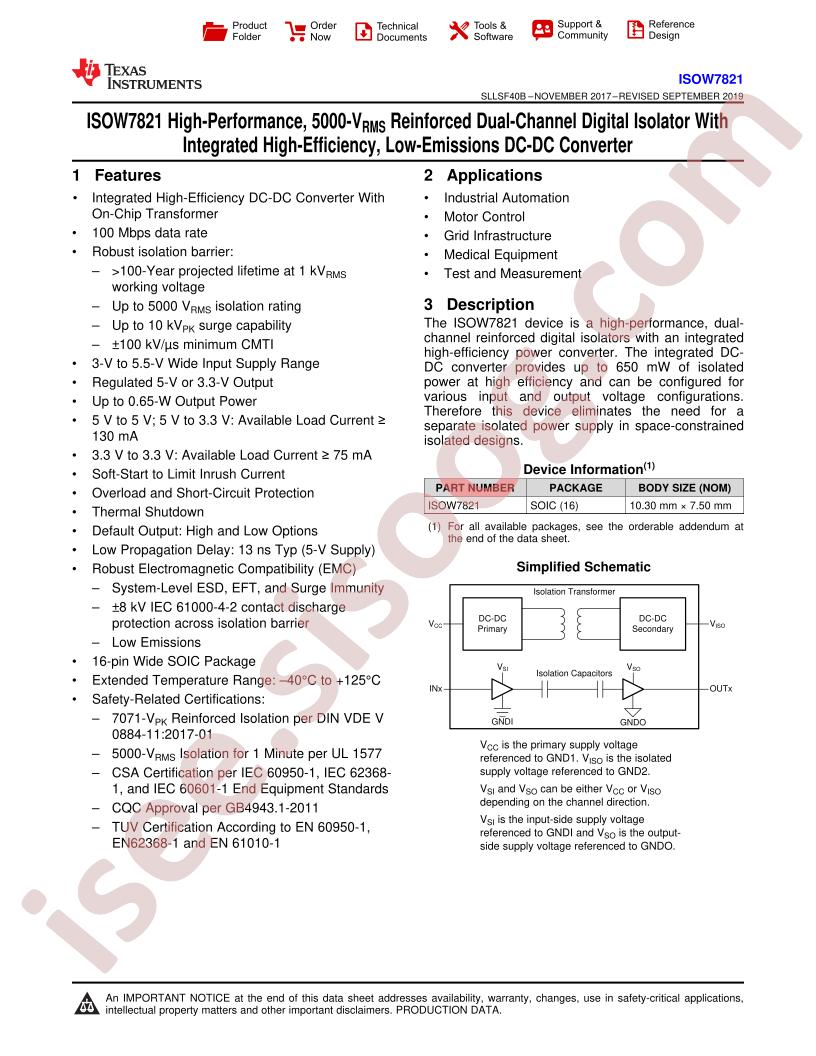

ISOW7821 Datasheet دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت ISOW7821 Datasheet	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Digital Isolators
Data Rate: 100Mbps
Datasheet: Texas Instruments ISOW7821FDWER
Applications: General-purpose
Supply Voltage: 3V~5.5V
Forward Channel: 1
Reverse channel: 1
Number of Channels: 2
Isolation Technology: 电容隔离
Operating Temperature: -40°C~+125°C
Voltage Isolation or Not: 带电压隔离
Package: SOP-16-300mil
Manufacturer: Texas Instruments
Channel Type: Unidirectional
Pulse Width Distortion (Max): 4.7ns
Type: General Purpose
Isolated Power: No
Series: -
Packaging: Cut Tape (CT)
Voltage - Supply: 3V ~ 5.5V
Propagation Delay tpLH / tpHL (Max): 17.6ns, 17.6ns
Common Mode Transient Immunity (Min): 100kV/µs
Technology: Capacitive Coupling
Supplier Device Package: 16-SOIC
Base Part Number: ISOW782
Inputs - Side 1/Side 2: 1/1
Voltage - Isolation: 5000Vrms
Mounting Type: Surface Mount
Part Status: Active
Rise / Fall Time (Typ): 2ns, 2ns
Package / Case: 16-SOIC (0.295", 7.50mm Width)
detail: General Purpose Digital Isolator 5000Vrms 2 Channel 100Mbps 100kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
